32-bit ALU Verilog Code Implementation

verilog

alu

hdl

digital design

source code

This page provides Verilog source code for a 32-bit Arithmetic Logic Unit (ALU). This ALU performs both arithmetic and logical operations.

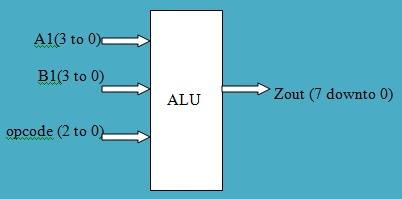

ALU Symbol

ALU Symbol

Truth Table

Operation	Opcode	A	B	Zout
A + B	000	1111	0000	00001111
A - B	001	1110	0010	00001100
A or B	010	1111	1000	00001111
A and B	011	1001	1000	00001000
Not A	100	1111	0000	11110000
A1 * B1	101	1111	1111	11100001
A nand B	110	1111	0010	11111101
A xor B	111	0000	0100	00000100

Verilog Code

module ALU (
    input  [3:0] a, b, s;
    input       en;
    output reg [7:0] y
);

always @(a, b, s, en, y)
begin
    if (en == 1)
    begin
        case (s)
            4'd0: y = a + b;
            4'd1: y = a - b;
            4'd2: y = a * b;
            4'd3: y = {4'b0000, ~a};
            4'd4: y = {4'd0, (a & b)};
            4'd5: y = {4'd0, (a | b)};
            4'd6: y = {4'd0, (a ^ b)};
            4'd7: y = {4'd0, ~(a & b)};
            4'd8: y = {4'd0, ~(a | b)};
            4'd9: y = {4'd0, ~(a ^ b)};
            default: begin end
        endcase
    end
    else
        y = 8'd0;
end

endmodule
