Stepper Motors: Advantages and Disadvantages

stepper motor
motor control
electromechanical device
motion control
automation

This article explores the pros and cons of stepper motors, providing a comprehensive overview of this electromechanical device.

What is a Stepper Motor?

Introduction:

A stepper motor is an electromechanical device that transforms electrical pulses into precise, discrete mechanical movements. When electrical pulses are applied in the correct sequence, the motor’s spindle rotates in distinct steps.

  • The sequence of pulses determines the direction of the motor shaft’s rotation.
  • The frequency of the pulses directly correlates with the speed of the shaft’s rotation.
  • The number of input pulses determines the length of the rotation.

Stepper motors consist of two primary components: the stator and the rotor. The stator coils draw power at a constant level, regardless of speed.

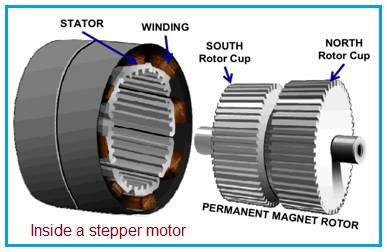

Stepper motor inside

Types of Stepper Motors:

There are several types of stepper motors, including:

  • Variable reluctance stepper motor
  • Permanent magnet stepper motor
  • Hybrid synchronous stepper motor
  • Bipolar stepper motor
  • Unipolar stepper motor

Applications:

Stepper motors find use in a variety of applications, such as:

  • Industrial machines
  • Surveillance products
  • Medical scanners
  • Fluid pumps
  • Consumer electronics

Benefits (Advantages) of Stepper Motors

Here’s a breakdown of the benefits offered by stepper motors:

  • Non-Cumulative Step Error: The percentage step error does not accumulate as the motor rotates, ensuring accuracy over long periods.
  • Wide Speed Range: Stepper motors can operate at a wide range of speeds, including very slow speeds, without requiring reduction gearing.
  • Excellent Responsiveness: They provide excellent response during start, stop, and reverse operations.
  • High Reliability: With no brushes or commutator, stepper motors are highly reliable. Their lifespan primarily depends on the bearing’s life.
  • Simple and Low-Cost Control Circuit: The control circuit for a stepper motor is relatively simple and inexpensive.
  • Suitable for Low-Power Applications: They are mainly used in low power applications.

Drawbacks (Disadvantages) of Stepper Motors

While stepper motors have several advantages, they also have some drawbacks:

  • Noise and Vibration: Stepper motors can be noisy and produce vibration, which can be undesirable in certain applications.
  • Resonance: Resonance can occur if the motor is not properly controlled.
  • Torque Loss at High Speeds: There is a progressive loss of torque at high speeds, making it difficult to operate at extremely high speeds.
