The IRF540 is a popular N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) widely used for switching and amplifying applications. Its appeal lies in its high current handling capacity, low on-resistance, and fast switching speed. This makes it particularly well-suited for power electronics applications, such as motor drivers, LED drivers, and other circuits that demand efficient switching.

Features of the IRF540 MOSFET (Vishay)

  • Drain-Source Voltage (VDS): Withstands up to 100 V.
  • Drain Current (ID): Handles continuous drain current up to 28 A.
  • Gate Threshold Voltage (VGS(th)): Ranges from 2.0V to 4.0V, meaning it can be turned on with a relatively low gate voltage.
  • Low RDS(on): Offers a low on-state resistance (around 0.077Ω), resulting in low power losses.
  • Fast Switching: Capable of switching frequencies ranging from several kHz to MHz, making it suitable for high-speed switching applications.
  • Efficiency: Low switching loss makes it suitable for high-efficiency power conversion circuits.
  • Package Type: Usually available in a TO-220 package, which allows for easy heat dissipation and mounting on heatsinks.

IRF540 MOSFET Pinout Diagram

The IRF540 is a 3-pin MOSFET with the following pin configuration in the TO-220 package:

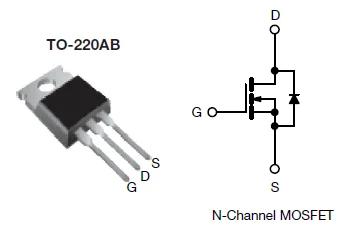

IRF540 pin diagram

Figure 1 depicts the IRF540 MOSFET symbol and the actual device. The following table details the pins of this MOSFET device.

Pin numberDescription
1.Gate (G): Controls the ON/OFF state of the MOSFET
2.Drain (D): The main current flows from drain to source when the MOSFET is on
3.Source (S): Connected to ground in most N-channel MOSFET circuits

Application Example: DC Motor Speed Control

The IRF540 can be used to control the speed of a DC motor by adjusting the duty cycle of a PWM (Pulse Width Modulation) signal applied to the Gate pin of the MOSFET.

Setup:

  • The Drain pin connects to one terminal of the motor, while the other motor terminal connects to the positive supply voltage.
  • The Source pin is connected to ground.
  • A PWM signal is applied to the Gate pin to control the switching of the MOSFET.

Operation:

The duty cycle of the PWM signal determines how long the MOSFET stays on during each cycle, effectively controlling the average voltage applied to the motor and thereby its speed.

Increasing the duty cycle increases the motor speed, while reducing it lowers the speed.

The IRF540’s high current capability (up to 33A) makes it suitable for driving small- to medium-sized motors.

Other Applications

  • LED Dimming: By adjusting the PWM signal to the gate of the IRF540, LED brightness can be controlled.
  • Battery Management: IRF540 can be used in battery protection and charging circuits.
  • Power Supplies: Commonly used in switched-mode power supplies (SMPS) and inverter circuits where high-speed switching is needed.

Conclusion

The IRF540 MOSFET is a powerful choice for efficient power control in various electronic applications due to its high current rating, fast switching ability, and low power loss. Its flexibility makes it a key component in a wide range of power electronics applications.
