8-to-3 Priority Encoder: Verilog Code Implementation

verilog encoder priority encoder digital logic source code

This page provides Verilog source code for an 8-to-3 encoder with priority. You’ll also find the block diagram and truth table to help understand the functionality.

Block Diagram and Truth Table

Here’s a look at the encoder’s structure and behavior:

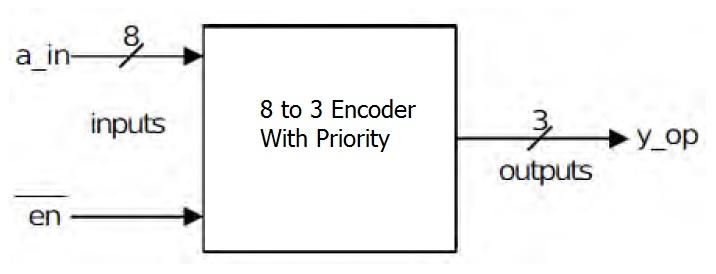

8 to 3 Encoder With Priority Block Diagram

8 to 3 Encoder With Priority Block Diagram

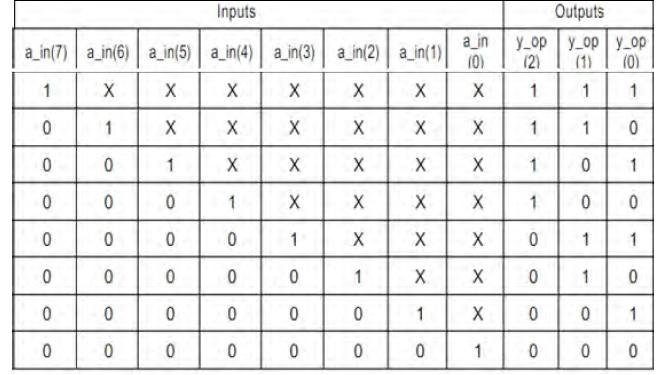

8 to 3 Encoder With Priority Truth Table

8 to 3 Encoder With Priority Truth Table

8 to 3 Encoder with Priority Verilog Code

module prio_enco(en, a_in, y_op);
  input en;
  input [7:0] a_in;
  output [2:0] y_op;
  reg [2:0] y_op;

  always @ (a_in,en)
  begin
    case (a_in)
      8'b00000001: y_op = 3'b000;
      8'b0000001x: y_op= 3'b001;
      8'b000001xx: y_op= 3'b010;
      8'b00001xxx: y_op= 3'b011;
      8'b0001xxxx: y_op= 3'b100;
      8'b001xxxxx: y_op= 3'b101;
      8'b01xxxxxx: y_op= 3'b110;
      8'b1xxxxxxx: y_op= 3'b111;
      default: y_op=3'bxxx;
    endcase
  end
endmodule
