A varicap diode, also known as a varactor diode or tuning diode, is a semiconductor diode whose capacitance can be controlled by an applied voltage. The term “varicap” stands for variable capacitance, reflecting the primary characteristic of these diodes. Simply put, you can change the capacitance of this diode by changing the voltage you apply to it.

Varicap Diode Working Principle

Here’s a breakdown of how a varicap diode works:

  • The varicap diode operates based on the reverse-biased pn-junction capacitance variation.
  • When a reverse-bias voltage is applied across the varicap diode, the depletion region widens, leading to a decrease in the capacitance. Think of it like stretching a rubber band – the more you stretch it (increase the voltage), the thinner it gets (lower capacitance).
  • Conversely, when the reverse-bias voltage is reduced or removed, the depletion region narrows, resulting in an increase in capacitance. Releasing the rubber band allows it to thicken (higher capacitance).
  • The capacitance of a varicap diode is inversely proportional to the applied reverse-bias voltage. This relationship is key to its functionality.

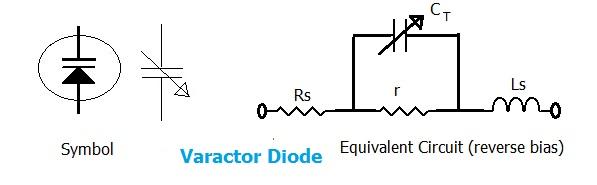

Here’s an image of a typical varicap diode symbol and its equivalent circuit:

varicap diode symbol and equivalent circuit

Varicap Diode Applications

Varicap diodes have a wide range of applications due to their voltage-controlled capacitance:

  • Voltage Controlled Oscillators (VCOs): Used in RF and microwave designs, the varying capacitance allows frequency modulation or tuning in response to a control voltage. This is crucial for generating signals with adjustable frequencies.
  • Frequency Synthesizers: Helps in the generation of stable, precise, and tunable output frequencies.
  • Voltage Tunable Filters: Used in the adjustment of the frequency response of these filters, enabling dynamic filtering capabilities.
  • FM Receivers: Employed for Automatic Frequency Control (AFC) to maintain the receiver tuned to the desired frequency. This prevents drifting and ensures clear reception.
  • Other Applications: PLLs (Phase Locked Loops), resonant circuits, voltage-controlled attenuators, voltage-tuned delay lines, television (TV) tuners, and more.

Benefits or Advantages of Varicap Diodes

The advantages of using varicap diodes are plentiful:

  • Voltage-Controlled Capacitance: The ability to provide variable capacitance in response to an applied voltage enables precise tuning of electronic circuits. It gives you fine-grained control over capacitance.
  • Frequency Agility: Capacitance can be tuned by adjusting the reverse bias voltage of the varicap diode, which helps enable frequency agility in electronic circuits. This allows circuits to quickly adapt to different frequencies.
  • Compact Size: They are typically smaller in size, allowing for integration into compact electronic devices and circuits.
  • Low Power Consumption: Suitable for battery-powered and energy-efficient circuits and systems, making them ideal for portable devices.
  • Fast Response Time: Offers a fast response time to changes in applied voltage, which is preferred in VCO designs.
  • Precise Frequency Control: Varicap diodes are used for precise and accurate frequency control in various applications such as PLLs, synthesizers, and tunable filters.
  • Simplified Tuning: They help in simplifying the tuning mechanism in electronic circuits, making designs less complex.
  • Stable and Reliable Performance: They can provide stable and reliable performance in applications where precise tuning is essential.
  • Wide Frequency Range: They can cover a wide frequency range, offering versatility in different applications.
  • Cost-Effective: They are cost-effective components, making them an attractive option for various designs.

In summary, the numerous benefits and characteristics of varicap diodes make them valuable in tuning and frequency control applications across multiple industries. They offer a convenient and effective way to dynamically adjust capacitance in electronic circuits.
