LM311 Comparator IC: An Overview

comparator
lm311
circuit
oscillator
voltage

The LM311 is a high-speed voltage comparator integrated circuit (IC) manufactured by various semiconductor companies. It’s a popular choice in electronics for comparing voltages and generating a digital output based on that comparison.

Let’s dive into the LM311 comparator circuit, its pin diagram, specifications, and features. The LM311’s versatility makes it suitable for a wide range of applications where voltage comparison is essential. Its high-speed operation, open collector output, and flexible input configuration make it a favorite for both analog and digital circuits.

LM311 Pin Diagram

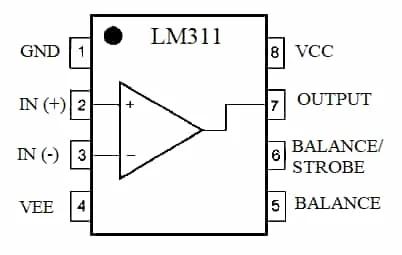

The following figure and table outline the pin details of the LM311 comparator IC.

LM311 pin diagram

Pin numberDescription
1GND
2Noninverting input
3Inverting input
4VEE
5Balance
6Balance/Strobe
7Output
8VCC

The LM311 compares two input voltage signals, typically referred to as the inverting (-) and non-inverting (+) inputs. It then produces a digital output signal based on the comparison result.

The LM311 also has a voltage reference pin (Vref) that sets the threshold voltage for comparison. The voltage at this pin determines the point at which the output switches states based on the comparison of the input voltages.

The LM311 typically operates from a single supply voltage ranging from 5 volts to 30 volts, making it suitable for a wide range of applications.

Applications

The LM311 is commonly used in applications such as voltage level detection, window comparators, overvoltage protection circuits, zero-crossing detectors, pulse-width modulators, and many others.

LM311 Comparator Circuit as an Astable Multivibrator

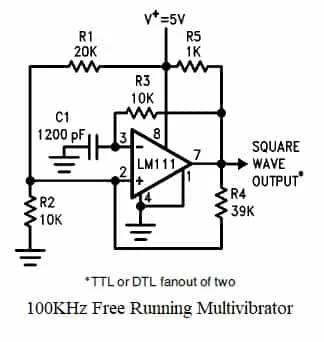

As shown in the figure below, the LM311 can be configured as a free-running multivibrator, also known as an astable multivibrator or oscillator. In this configuration, the LM311 functions as a relaxation oscillator, generating a continuous square wave output without needing an external trigger signal.

LM311 comparator circuit

The frequency of oscillation in this configuration is determined by the values of the resistor (R1) and capacitor (C1). Increasing the values of R1 or C1 will result in a longer charging/discharging time, leading to a lower frequency, while decreasing these values will increase the frequency. The relationship can be represented with the following (approximate) formula:

f1R1C1f \approx \frac{1}{R_1 C_1}

Conclusion

The LM311 comparator IC is a versatile and widely-used component in electronics due to its ability to compare voltages and generate digital output signals based on the comparison result. Its flexibility in configuration allows for various applications ranging from voltage level detection to waveform generation.
