This article discusses the advantages and disadvantages of diodes, focusing primarily on PN junction diodes, their operation, and common applications.
What is a Diode?
- A diode is an electronic device with two electrodes: an anode and a cathode.
- A PN diode is a two-layer semiconductor, typically made from silicon, though germanium is sometimes used.
- The layers are doped with impurities to tailor their electrical properties. The N-layer has a surplus of electrons, creating a net negative charge (cathode). The P-layer has a deficit of electrons, creating a net positive charge (anode).

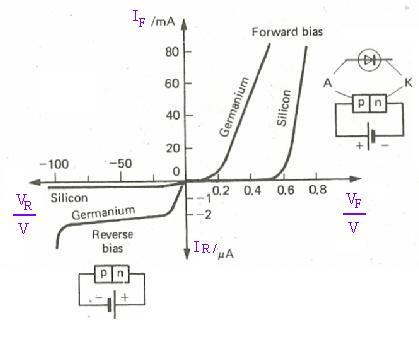

- As a two-terminal device, a diode allows current to flow predominantly in one direction (forward direction). In this mode, the anode has a higher potential than the cathode. This is known as forward bias.
- Reversing the voltage polarity puts the diode in reverse bias. In this state, the diode attempts to block current flow, within its rated limits.
- Diodes are used in numerous applications, including switches, rectifiers, regulators, voltage multipliers, clipping circuits, and clamping circuits.
- There are various types of diodes, each with unique voltage characteristics suited for different applications. Common types include GUNN, Varactor, Tunnel, PIN, Zener, Schottky, Impatt, Trapatt, and Baritt diodes.
For more detailed information, refer to a diode tutorial.
Advantages of Diodes
Here are some of the key advantages of using diodes:
- Rectification: Diodes are used as rectifiers to convert alternating current (AC) into direct current (DC).
- Voltage Spike Suppression: Diodes can suppress voltage spikes and protect sensitive electronic components from reverse voltages.
- Fast Operation: Diodes are fast-acting and don’t require a warm-up period.
- Cost-Effective: Diodes are relatively inexpensive compared to older vacuum tubes.
- Zero Current Consumption (Without Voltage): A semiconductor diode doesn’t generate current when no voltage is applied.
- Low Voltage Operation: Diodes operate at low voltages, leading to lower power consumption.
- Compact Size and Lightweight: Diodes are small and lightweight.
- Long Lifespan: Diodes typically have a long operational lifespan.
Disadvantages of Diodes
Here are some of the drawbacks of using diodes:
- Limited Reverse Voltage: Semiconductor diodes can’t withstand very high reverse voltages.
- Poor Response: Diodes can exhibit a poor response in certain applications.
- Reverse Saturation Current: Diodes exhibit reverse saturation current, which can be undesirable.
- High Noise at High Frequencies: Noise levels can be high in semiconductor devices at high frequencies.
- Varied Performance: Different diode types have unique benefits and drawbacks, necessitating careful selection based on the specific application. Consult the individual advantages and disadvantages of each diode type.
