Analog Front Ends (AFEs) are critical components in electronic systems that process analog signals before converting them into digital formats. AFEs play a pivotal role in applications ranging from medical diagnostics to wireless communication and industrial sensing. With the increasing demand for precision and efficiency, AFE integrated circuits (ICs) have become indispensable. In this guide, we delve into the fundamentals of AFEs, their significance in signal processing, and highlight some of the most popular AFE ICs used in various industries.

What is AFE?

An Analog Front End (AFE) is a specialized electronic circuit that processes analog signals from various sources before converting them into digital formats. It serves as a bridge between the analog world (real world signals like sound, temperature, or light) and digital systems (microcontrollers or processors). The AFE includes essential components like amplifiers, filters, analog to digital converters (ADCs) and signal conditioning circuits. Its primary goal is to ensure the accurate acquisition and processing of weak or noisy analog signals.

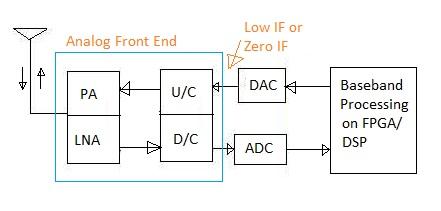

AFE-Analog Front End

The figure-1 depicts typical modules in analog front end. As shown it consists of RF LNA and Downconverter in the receive chain, While RF PA and Upconverter in the transmit chain. Analog Front end interfaced with RF antenna on one side and with DAC/ADC on the other side. Analog Front end generates zero IF or low IF. The baseband data is processed by algorithms running on FPGA or DSP.

Wide variety of sensors are used as analog front end which is connected with antenna and micro-controllers for specific applications. These sensors convert sensed input parameter (e.g. temperature) to the other output parameter (e.g. voltage or current). Refer Sensors or transducers for more information.

Functions of an Analog Front End (AFE)

  1. Signal Amplification: Boosts weak signals to levels suitable for further processing.
  2. Filtering: Removes noise or unwanted frequencies, ensuring a clean signal.
  3. Signal Conditioning: Adjusts signals to match the input requirements of ADCs or processors.
  4. Analog to Digital Conversion: Converts analog signals into digital data for further analysis.
  5. Impedance Matching: Ensures efficient signal transfer between sensors and processing circuits.

Analog Front End IC Vendors

Following are the vendors or manufacturers of Analog Front End ICs.

ManufacturersPart No. and features
Texas Instruments (TI)AFE4400 Series : Designed for pulse oximeters and heart-rate monitors.
Analog DevicesAD8232 : Commonly used in wearable ECG systems.
Maxim IntegratedMAX86150 : Integrated AFE for optical heart rate and SpO2 monitoring.
STMicroelectronicsAFE5851 : Ideal for ultrasound applications.
NXP SemiconductorMC33771 : Used for battery monitoring systems in EVs.

Applications of Analog Front Ends

  • Medical Devices: Used in ECG, EEG, and pulse oximeters to process biological signals.
  • Communication Systems: Enhances wireless communication by processing RF signals.
  • Industrial Automation: Processes data from pressure, temperature, and proximity sensors.
  • Consumer Electronics: Found in audio devices, cameras, and wearables for accurate signal handling.
  • Automotive Systems: Enables advanced driver assistance systems (ADAS) and in-vehicle sensors.

Conclusion

The Analog Front End is a vital building block for modern electronic systems, ensuring accurate signal processing and efficient data conversion. Popular AFE ICs cater to diverse applications, enabling advancements in healthcare, communication and industrial automation. As technology progresses, AFEs will continue to play a key role in bridging the analog and digital worlds, fostering innovation across industries.
