CMOS Op-Amp: Types, Features, Advantages, and Disadvantages

cmos op amp
analog circuit
low power
signal processing
integrated circuit

A CMOS Operational Amplifier (CMOS Op-Amp) is an analog amplifier built using Complementary Metal-Oxide-Semiconductor (CMOS) technology. It’s widely used in low-power, high-density, and mixed-signal integrated circuits due to its efficient power consumption and scalability in digital and analog applications.

Key Characteristics of CMOS Op-Amp

  • Low Power Consumption: CMOS Op-Amps consume less power than traditional bipolar junction transistor (BJT) or junction field-effect transistor (JFET) based op-amps. This makes them ideal for battery-powered and portable devices.
  • High Input Impedance: CMOS op-amps have very high input impedance (in the order of gigaohms), which means they draw negligible current from the input signal source.
  • Lower Output Current Drive: Although they are energy-efficient, CMOS op-amps typically offer lower output current drive compared to their BJT counterparts. This may limit their performance when driving low-impedance loads.
  • Good Linearity and Low Noise: CMOS op-amps are designed to offer good linearity and low noise, making them suitable for precision applications.
  • Scalability: CMOS technology is scalable, allowing designers to create op-amps with high integration and small form factors, suitable for large-scale integrated circuits (ICs).

Internal Structure of CMOS Op-Amp

The basic structure of a CMOS Op-Amp consists of the following stages:

  • Input Differential Pair: A differential pair made of NMOS or PMOS transistors serves as the input stage. It compares two input voltages and outputs a difference signal.
  • Gain Stage: A voltage gain stage amplifies the signal from the differential pair to provide a high open-loop gain.
  • Output Stage: The output stage is typically a push-pull configuration to deliver the amplified signal to the load with minimal distortion. It helps drive the output load effectively.
  • Frequency Compensation: CMOS op-amps often include a compensation capacitor to stabilize the op-amp and improve frequency response.

Types of CMOS Op-Amps

  1. Two-Stage CMOS Op-Amp: This common configuration consists of an input stage (differential pair) and a second gain stage, followed by an output buffer. This design achieves high gain and wide bandwidth, and is typically used in general-purpose applications.

  2. Folded-Cascode CMOS Op-Amp: A more complex design with a single gain stage but higher speed and improved frequency response. It is often used in high-speed and low-noise applications.

  3. Fully Differential CMOS Op-Amp: This type of op-amp processes differential signals at both inputs and outputs. It is ideal for applications requiring high common-mode rejection, such as analog-to-digital converters (ADCs).

  4. Rail-to-Rail CMOS Op-Amp: A rail-to-rail op-amp can swing its output voltage close to the supply rails, allowing full utilization of the supply voltage range. This is particularly useful in low-voltage circuits.

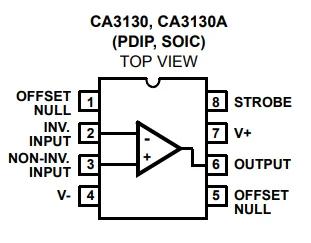

CA3130 Pin Diagram

Image Courtesy: Renesas

Example: CA3130 CMOS Op-amp

The CA3130 is a popular high-performance operational amplifier (Op-Amp) that combines the advantages of CMOS (Complementary Metal-Oxide-Semiconductor) transistors at the input stage and Bipolar Junction Transistor (BJT) for the output stage. It offers high input impedance, low input current, and fast response times, making it suitable for precision applications. The figure depicts the pin diagram of the CA3130 CMOS Op-Amp IC.

The key features of the CA3130 Op-Amp are as follows:

  • Input Impedance: Range of 1.5 teraohms (TOhm)
  • Low Input Current: Range of picoamperes
  • Wide Supply Voltage Range: It operates over a wide voltage range, from +5V to +16V single supply or ±2.5V to ±8V dual supply.
  • Fast Slew Rate: 10V/µs
  • Gain-bandwidth product: Typically 15 MHz
  • Input noise voltage: Around 40 nV/√Hz at 1 kHz
  • High open-loop gain: Around 100,000 to 200,000
  • It has protection against input voltage spikes and electrostatic discharge (ESD)

Applications of CMOS Op-Amp

Following are the common applications:

  • Analog Signal Processing: CMOS op-amps are used in filters, amplifiers, and integrators for processing analog signals in communication systems and audio devices.
  • Data Converters: They play a critical role in analog-to-digital (ADC) and digital-to-analog (DAC) converters, ensuring accurate signal conversion in mixed-signal systems.
  • Low-Power Devices: CMOS op-amps are ideal for power-sensitive applications, such as hearing aids, pacemakers, and wearable devices.
  • Sensor Interface: They are used in sensor interface circuits for conditioning signals from various sensors (temperature, pressure, etc.), enabling precise measurements.
  • Portable Electronics: Due to their low power consumption, CMOS op-amps are found in mobile phones, tablets, and other battery-operated devices.

Advantages of CMOS Op-Amp

Following are the benefits of CMOS Operational Amplifiers:

  1. Low power consumption, making them ideal for portable and battery-powered devices.
  2. High input impedance ensures minimal loading on the input signal.
  3. Scalability for integration into large-scale integrated circuits.
  4. Low noise and high linearity, suitable for precision applications.

Disadvantages of CMOS Op-Amp

Following are the drawbacks of CMOS Op-amp:

  1. Limited output drive current, restricting their ability to drive low-impedance loads effectively.
  2. Slower speed compared to bipolar op-amps, though newer designs improve this.
  3. Lower gain at higher frequencies compared to BJT-based op-amps.

Conclusion

CMOS Op-Amps are essential in modern electronics due to their low power consumption, scalability, and suitability for high-density integrated circuits. They are widely used in various analog and mixed-signal applications such as signal processing, data conversion, and sensor interfacing. Although they have some limitations in terms of output drive and speed, advancements in CMOS technology continue to enhance their performance and range of applications.
