This page compares Soft Tube Modulator and Hard Tube Modulator, highlighting the key differences between them.

Soft Tube Modulator

Soft Tube Modulator

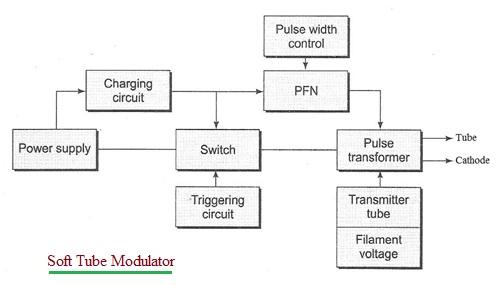

Figure 1 illustrates a Soft Tube Modulator. As shown, a power supply generates a high voltage. This voltage charges the Pulse Forming Network (PFN) through a charging circuit.

When the switch is in a short circuit condition, it initiates a pulse. If this condition terminates, the PFN discharges. The PFN acts as an energy storage device and transmits this energy to the transmitter. The duration of this transfer is governed by the PFN circuit. The initiation and termination of subsequent pulses occur during the following charging and discharging cycles of the PFN circuit.

Here are the key features of a soft tube modulator:

  • It comprises a PFN, a switch pulse, a transformer, and a transmitter tube.
  • It’s also known as a line modulator.
  • The PFN is stimulated by a transmission line.
  • It utilizes a Silicon Controlled Rectifier (SCR) for switching.
  • Its pulse width is determined by the PFN.

Hard Tube Modulator

Hard Tube Modulator

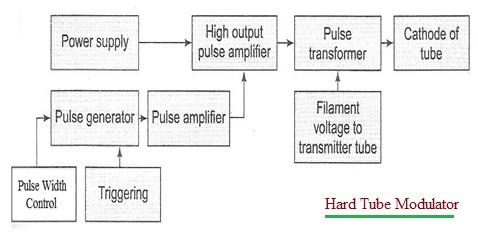

Figure 2 depicts a Hard Tube Modulator.

The following are characteristics of a hard tube modulator:

  • It consists of a pulse generator, pulse amplifier, high output pulse amplifier, pulse transformer, power supply, transit trigger circuit, etc.
  • It is a low-level modulator with added amplification.
  • The desired pulse width is easily achievable.
  • In the event of arc detection, the transmitter pulse shuts off immediately, protecting the transmitter.
  • Once the arcs are extinguished, the modulator resumes normal operation.
  • An example of a hard tube modulator is a floating deck configuration.
