Understanding Modulation: Basics, Types, and Applications

Introduction

Modulation is a fundamental process in communication systems, enabling the efficient transmission of signals over various mediums. By altering a carrier signal’s properties such as amplitude, frequency, or phase, modulation ensures that data is transmitted effectively, even across long distances.

This guide delves into the basics of modulation, explores its diverse applications, highlights its essential functions, and provides an overview of its different types, including analog and digital modulation techniques.

What is Modulation?

Modulation is a term widely used in telecommunication or wireless networks. Modulation basically is used to convert information (digital bit stream or analog audio signal) in the form that can be physically transmitted over the air or cable.

Information is referred to as the baseband or modulating signal. The waveform which is used to convert the information in the physically transmitted form is called the carrier. The device which performs modulation operation is called a modulator, and the resulting waveform or output of the modulator is called the modulated signal.

The device which performs the inverse of modulation is called a demodulator, and the operation is named demodulation. The device which does both modulation and demodulation is called a MODEM.

Modulation can be applied to Direct current, alternating current, and optical signals.

In earlier days, Morse code was used in telegraphy, which was used as a modulation technique to convert information into a form that can be transmitted over a telegraph line. It is used to convert information to binary form i.e., ON and OFF forms.

This is very popular in amateur radio. The live example of modulation and demodulation process is in our home when we use the internet. For the Internet, we use a MODEM, which can be housed in a USB Dongle, Mobile, IPAD, laptop, etc. In MODEM, the modulator converts digital information into analog audio tones (or Radio frequency signal), and the demodulator does the reverse.

Modulation Functions

Following are the main functions of modulation techniques.

• It is used to convert digital information into analog form suitable to be transported between two points in a wired/wireless system.
• It helps to cover longer distances with smaller antenna types for signals to be propagated in the Earth’s atmosphere. With modulation, antenna sizes are practically achievable.
• The modulation techniques such as QPSK, 16QAM, 64QAM, 256QAM help to achieve a higher data rate as they map more number of bits over a single carrier frequency signal.
• Angle modulation techniques help to reduce noise and to improve system fidelity.
• ASK offers high bandwidth efficiency. FSK offers a higher SNR. PSK offers susceptibility against errors.

Modulation Applications

Following are the applications of modulation types.

• Low speed, Voice band based data communication modems
• High-speed data transmission systems
• Satellite communication systems and digital microwave systems
• GSM, LTE (4G), WiMAX, WLAN, 5G technologies
• FM radio broadcast, TV sound signal, 2-way mobile radio etc.

Modulation Types: Analog vs Digital

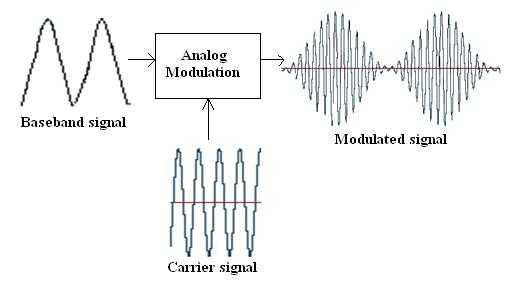

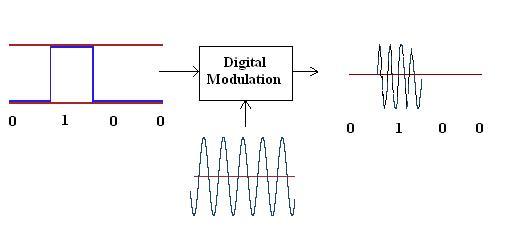

To know what is modulation, let us understand two major categories of modulation: Analog modulation and digital modulation, the same is depicted in the following figure. AM has been shown for analog modulation and ASK for digital modulation. The fundamental difference is, the baseband input signal for Analog modulation is analog, and for digital modulation, it is digital. The carrier is analog for both cases.

Analog modulation techniques are as follows:

• AM: The carrier amplitude is changed as per the analog baseband signal.
• FM: The carrier frequency is changed as per the analog baseband signal.
• PM: The carrier phase is changed as per the analog baseband signal.

Applications: Radio and television broadcast stations use AM and FM forms of modulation. Some employ Single Side Band Modulation.

Few of the digital modulation techniques are as follows:

• ASK: It uses a finite number of amplitudes. Widely used in optical fiber where for LED transmitters binary 1 is by a pulse of light and binary 0 by the absence of light. In some other applications, different amplitudes i.e., lower and higher amplitudes are used to represent binary 1 and binary 0.
• FSK: It uses a finite number of frequencies. F1 and F2 are used to represent binary 1 and binary 0.
• PSK: It uses a finite number of phases. P1 and P2 are used to represent binary 1 and binary 0.

The most complex digital modulation techniques used now-a-days are BPSK, QPSK, and QAM, widely employed in radio and microwave communications for cellular and satellite communication.

Conclusion

Modulation is indispensable in modern communication systems, playing a pivotal role in transmitting information with efficiency and reliability. From its basics to its applications and functions, understanding modulation helps in designing advanced communication networks. With various types like AM, FM, PM, and digital modulation techniques, it continues to drive innovation in technology, shaping how we share and receive information in today’s interconnected world.
