LabVIEW Source Code for BPSK, QPSK, 16QAM, and 64QAM Constellation Diagrams

labview
modulation
constellation diagram
source code
communication system

This page provides LabVIEW source code examples for generating constellation diagrams for BPSK, QPSK, 16QAM, and 64QAM modulation schemes.

BPSK (Binary Phase Shift Keying), QPSK (Quadrature Phase Shift Keying), 16QAM (16-ary Quadrature Amplitude Modulation), and 64QAM (64-ary Quadrature Amplitude Modulation) are common digital modulation techniques. Each of these techniques produces a distinct constellation diagram.

BPSK, QPSK, 16QAM, 64QAM Modulation Labview VI Block Diagram

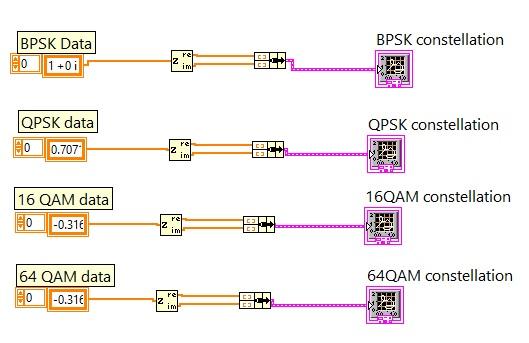

Figure 1 shows the block diagram of the LabVIEW VI for generating the constellation diagrams.

BPSK QPSK 16QAM 64QAM constellation labview BD

BPSK, QPSK, 16QAM, 64QAM Modulation Labview VI Front Panel

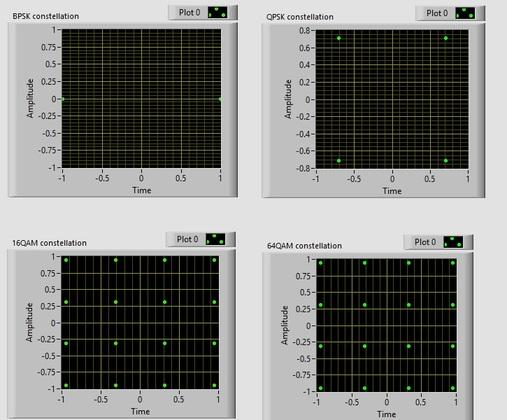

Figure 2 illustrates the front panel of the constellation diagram LabVIEW VI.

BPSK QPSK 16QAM 64QAM constellation labview FP

Download file

Download Binary to decimal converter vi file
