This page provides a Microstrip Width Calculator and explains the formula used.

microstrip line

Figure 1: Microstrip Line

(Refer to types of microstrip lines and basics of microstrip lines for more information.)

Microstrip Width Calculator and Example

Inputs

Outputs

Let’s look at an example calculation.

Inputs:

  • Relative dielectric permittivity (εr) = 3.4
  • h (substrate height) = 4.25 mils
  • t (conductor thickness) = 1.25 mils
  • Impedance (Z0) = 50 Ohm

Output:

  • Width (W) = 7.44 mils

(Note: Use 1 mm = 39.37 mils, or use a mm to mils converter, as shown below)

mm to mils Conversion Example

INPUT:

  • mm = 0.5

OUTPUT:

  • mils = 19.685

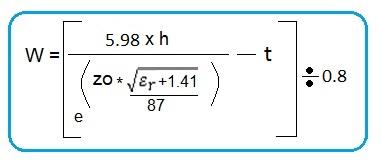

Microstrip Width Formula

The following equation is used for the Microstrip Width Calculator:

microstrip width formula
