Embedded Microstrip Impedance Calculator

microstrip
impedance
calculator
rf microwave
transmission line

This page describes an Embedded Microstrip Impedance Calculator. It presents the formula or equations used in this embedded Microstrip Impedance Calculator.

Embedded Microstrip Line

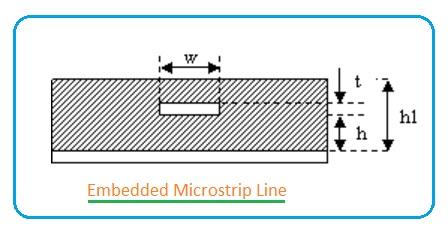

Figure 1: Embedded Microstrip Line

Inputs

Outputs

Example

INPUTS:

  • Er = 3.8
  • w = 5.1
  • t = 1.5
  • h = 4.45
  • h1 = 6

OUTPUT:

  • Characteristic Impedance = 69.29

(1 mm = 39.37 mils)

mm to mils converter

Inputs

Outputs

EXAMPLE:

INPUT:

  • mm = 0.5

OUTPUT:

  • mils = 19.685

Embedded Microstrip Impedance Formula or Equation

The following equation or formula is used for the Embedded Microstrip Impedance Calculator:

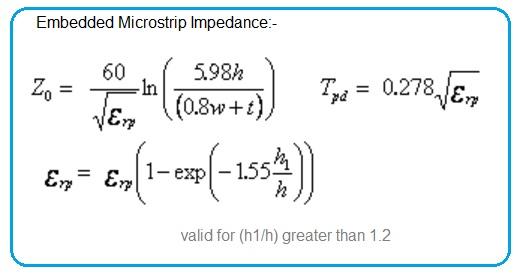

Embedded Microstrip Impedance Formula
