Microstrip Mitred Bend Calculator

rf microwave
microstrip
mitred bend
calculator
pcb design

This page covers the Microstrip Mitred Bend Calculator. It mentions the formula or equations used in this calculator.

Inputs

Outputs

EXAMPLE:

  • INPUTS: Width of line = 19.685 mils; Height of Substrate = 25 mils
  • OUTPUTS: D = 27.838; X = 20.726; A = 9.626

(1 mm = 39.37 mils, so to convert mm to mils, multiply by 39.37 or use the following mm to mils converter)

mm to mils converter

EXAMPLE:

  • INPUT: mm = 0.5
  • OUTPUT: mils = 19.685

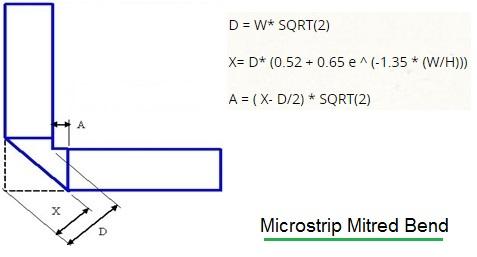

Microstrip Mitred Bend Formula or Equation

The following equation or formula is used for the Microstrip Mitred Bend Calculator.

Microstrip Mitred Bend
