Alcohol sensors play a crucial role in various industries, from automotive safety to healthcare. As the demand for reliable alcohol detection technology rises, manufacturers are focusing on innovative solutions to meet safety standards and industry needs. In this guide, we explore the top alcohol sensor manufacturers known for delivering high-quality sensors that ensure accuracy and dependability. We will also understand MQ3 alcohol sensor features, its pinouts, its working and benefits (i.e. advantages).

Introduction

Alcohol, also called ethanol, is found in alcoholic drinks which include liquor, wine, beer, etc. When a person drinks this liquid, alcohol is absorbed into the blood and processed by the liver. It takes some time for the liver to process the alcoholic drink. A person feels drunkenness (i.e., intoxication) if they consume more drinks before the liver processes it.

The effects of alcoholic drinks vary based on various factors such as the age of the person, weight, food taken before drinking, and so on. Due to excessive drinking, the behavior of a person changes, and this will be more dangerous for drivers. Drunk drivers lead to fatal accidents. To prevent accidents, it is necessary to measure the level of alcohol in the blood of drivers.

One method is to collect the blood samples and measure the alcohol. The other method is to use a breath analyzer. The breath analyzer gives fast results, but it is not as accurate as the blood alcohol measurement method.

What is an Alcohol Sensor?

The sensor which detects the presence of alcohol in the air is known as an alcohol sensor or detector. The most common modules available are MQ3 and MQ135. Let us understand the MQ-3 alcohol gas sensor, which is simple to use and easy to interface with a microcontroller. It provides an analog output and a corresponding digital output proportional to the gas concentration in the air. It requires a 5V supply and potentiometer adjustment for effective working to trigger output based on maximum gas concentration. The LED on the board can show the presence of alcohol gas.

The features of the MQ-3 alcohol gas sensor are as follows:

  • It has an LED Light indicator.
  • It has analog and digital output.
  • It offers carbon monoxide detection (0.05-10 mg/L alcohol).
  • It offers high sensitivity to alcohol gas and small sensitivity to Benzine.

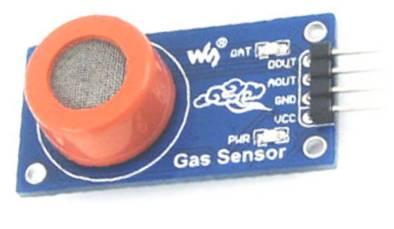

Alcohol Sensor

MQ3 Pinout Description

MQ3 PinoutDescription
AOUTAnalog Output, 0-5 V which is proportional to gas intensity.
DOUTTTL format (0 and 1) Digital Output corresponding to analog output (0.1 V and 5V), threshold value is required to set using potentiometer on board to get the digital output on this pin.
VCCThis pin powers the module, which is normally 5V.
GNDIt is used to connect the MQ3 module to the system ground.

Working of MQ-3 Alcohol Gas Sensor

The MQ3 sensor uses SnO2 material, which has lower conductivity in fresh air. When alcohol gas exists, the conductivity of the sensor increases. This becomes even higher for a greater concentration of gas. The sensor provides analog output based on the alcohol gas concentration. It also provides digital output as described above proportional to the analog output.

Benefits or Advantages of Alcohol Sensor

Following are the benefits or advantages of the alcohol gas sensor:

  • It offers long life and higher stability.
  • It is available at a low cost.
  • It requires a simple driver circuit.
  • It offers higher sensitivity and hence offers a fast response.
  • It is very simple to use and easy to interface with microcontrollers.

Alcohol Sensor Manufacturers or Vendors

ManufacturersDescription
TOSHNIWAL SENSING DEVICES PVT. LTD.• Part numbers : TGS822 Gas Sensor, TGS2620 Gas Sensor • Benefits : Higher sensitivity, low power consumption, long life, low cost etc. • Used for alcohol testers, organic vapor detectors, solvent detectors, dry cleaners etc. • Website : https://tsdpl.com/
Zhengzhou Winsen Electronics Technology Co., Ltd.• Alcohol sensors : MQ-3B, MQ-303B, MP-3B, MR513, ME2-C2H5OH etc. • Other sensors such as CO2, Humidity, CO, natural gas, LPG, flow sensors are also available. • Website : https://www.winsen-sensor.com/
Amazon.in, Robu.inMany alcohol gas sensor modules and portable alcohol breath analyzers with digital LCD displays are available.

Conclusion

Choosing the right alcohol sensor manufacturer can significantly impact your project’s success, whether it’s for automotive integration or industrial safety systems. By partnering with leading manufacturers, you can ensure precision, durability, and compliance with industry standards. Explore these top manufacturers to find the best solutions for your alcohol detection needs.
