10 Applications of Metal Oxide Gas Sensors

Metal oxide gas sensors are a type of gas sensor that uses a metal oxide semiconductor as the sensing material to detect the presence of gases. These sensors operate based on the principle that the electrical conductivity of the metal oxide changes when it comes into contact with certain gases. Metal oxide gas sensors are widely used for detecting a variety of gases, including toxic, combustible, and volatile organic compounds (VOCs).

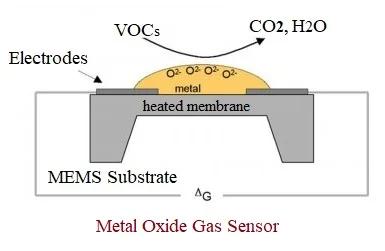

Structure and Working Operation

The structure and working operation of a metal oxide gas sensor can be described as follows:

• Sensing Element: The core component is a metal oxide semiconductor material, typically tin dioxide ($SnO_2$), zinc oxide ($ZnO$), or titanium dioxide ($TiO_2$). The sensing element is usually in the form of a thin film or a layer of metal oxide particles.
• Substrate: The metal oxide layer is deposited on a substrate, which provides mechanical support and can be made of materials like alumina.
• Heater: A built-in heater is used to maintain the sensing element at a specific temperature, as the gas sensing reaction is temperature-dependent.
• Electrodes: Electrodes are attached to the sensing element to measure the changes in electrical resistance.
• Gas Interaction: When the target gas interacts with the surface of the metal oxide, it either donates or accepts electrons, altering the electrical conductivity of the material. This change in conductivity is proportional to the concentration of the gas and is measured by the sensor’s electronic circuit.

Metal Oxide Gas Sensor Applications

Here are 10 applications of metal oxide gas sensors, including indoor air quality monitoring:

1. Air Quality Monitoring:

   • Indoor Air Quality: Used in homes, offices, and public buildings to detect pollutants like carbon monoxide ($CO$), nitrogen dioxide ($NO_2$), and volatile organic compounds (VOCs), ensuring a healthy indoor environment.
   • Outdoor Air Quality: Deployed in urban areas to monitor pollution levels and provide data for environmental health assessments and regulatory compliance.

2. Industrial Safety:

   • Leak Detection: Essential in detecting hazardous gas leaks (e.g., methane, hydrogen, ammonia) in chemical plants, refineries, and storage facilities to prevent accidents and explosions.
   • Occupational Safety: Used in industrial environments to monitor air quality and protect workers from exposure to toxic gases.

3. Automotive Emissions:

   • Emission Control: Installed in vehicles to monitor exhaust gases and ensure compliance with environmental regulations by optimizing combustion and reducing harmful emissions.
   • Cabin Air Quality: Used in car cabins to detect and filter out pollutants from the external environment, enhancing passenger comfort and health.

4. Smart Home Devices:

   • Smart Thermostats: Integrated with HVAC systems to monitor indoor air quality and adjust ventilation based on the concentration of detected gases.
   • Air Purifiers: Employed to detect air pollutants and control the operation of air purifiers to maintain optimal indoor air quality.

5. Food and Beverage Industry:

   • Quality Control: Used to detect spoilage and contamination by monitoring gases emitted by food products during storage and transportation.
   • Fermentation Monitoring: Monitors the levels of gases like carbon dioxide ($CO_2$) in fermentation processes to ensure product quality and consistency.

6. Medical Applications:

   • Breath Analysis: Utilized in non-invasive medical diagnostics to detect biomarkers in human breath for conditions like diabetes, liver disease, and infections.
   • Anesthetic Gas Monitoring: Used in hospitals to monitor and control the concentration of anesthetic gases during surgeries.

7. Agriculture:

   • Greenhouse Gas Monitoring: Deployed in greenhouses to monitor and control the levels of gases like $CO_2$ and ethylene, optimizing plant growth conditions.
   • Livestock Monitoring: Used to detect harmful gases (e.g., ammonia, methane) in animal husbandry to ensure the health and safety of livestock.

8. Environmental Research:

   • Climate Change Studies: Employed in research to measure the concentration of greenhouse gases (e.g., $CO_2$, methane) in the atmosphere, contributing to climate change studies and environmental protection initiatives.
   • Soil Gas Monitoring: Used to monitor soil gas emissions in environmental studies and remediation projects.

9. Consumer Electronics:

   • Smartphones and Wearables: Integrated into mobile devices to monitor air quality in real-time, providing users with information about their environment and potential health risks.
   • Portable Air Quality Monitors: Used in personal air quality monitoring devices that detect pollutants and provide users with actionable data.

10. Mining and Oil Extraction:

    • Gas Detection: Crucial in detecting explosive gases (e.g., methane) in mining operations to prevent accidents and ensure worker safety.
    • Oil and Gas Exploration: Used to monitor gas emissions during drilling and extraction processes, helping to prevent leaks and environmental contamination.

Advantages of Metal Oxide Gas Sensors

The benefits or advantages of Metal Oxide gas sensors include:

• Capable of detecting very low concentrations of gases, making them suitable for applications requiring high sensitivity.
• Durable and can operate in harsh environments, including high temperatures and humidity.
• Generally have a longer operational lifespan compared to some other types of gas sensors.
• Can detect a variety of gases, making them versatile for multiple applications.
• Typically more affordable than other gas sensing technologies, enabling widespread deployment.

Limitations of Metal Oxide Gas Sensors

The drawbacks or limitations of Metal Oxide Sensors include:

• The built-in heater required to maintain the sensor at a specific temperature can lead to higher power consumption.
• May have cross-sensitivity to other gases, which can affect the accuracy of detection.
• The response time can be slower compared to some other gas sensor technologies.
• Performance can be affected by changes in temperature and humidity, requiring compensation or calibration.

Conclusion

Metal oxide gas sensors are essential tools for detecting and monitoring gases in a wide range of applications, from environmental monitoring and industrial safety to consumer electronics and healthcare. Their high sensitivity, robustness, and cost-effectiveness make them ideal for many uses, although they do have limitations such as higher power consumption and sensitivity to environmental conditions. Continuous advancements in sensor technology aim to address these challenges and expand the capabilities and applications of metal oxide gas sensors.
