Understanding UMTS Frame Structure and Time Slots

umts frame structure time slot 3g network wireless communication

The UMTS frame structure defines the timing and organization of data transmission in 3G networks. A thorough understanding of UMTS frames is crucial for network engineers and students to grasp the timing, synchronization, and error correction techniques used in UMTS. This knowledge facilitates better network planning and optimization for seamless communication. The UMTS frame structure defines how data is organized and transmitted over the air. The frame format is essential for maintaining synchronization and efficient data transfer in the network.

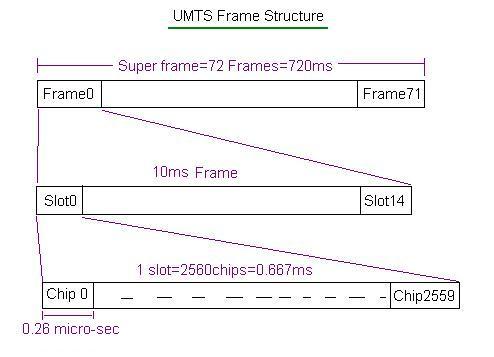

The following figure depicts the UMTS frame structure for a 3.84 Mcps radio system. It is made of a superframe, radio frame, and chips.

  • Each radio frame has a duration of 10ms and is composed of 15 slots.
  • Each slot is composed of 2560 chips.
  • The chip duration is about 0.26 microseconds (derived from 1 / 3.84 Mcps).
  • The slot duration is about 0.667ms.

UMTS Frame structure

A UMTS radio frame is divided into 15 time slots, each lasting 0.667 milliseconds. The entire frame duration is 10 milliseconds. Each time slot is further divided into chips, and the standard chip rate for UMTS is 3.84 Mcps (Mega chips per second).

Slot and Frame Organization

  • Each slot carries information such as pilot symbols, data symbols, and control symbols.
  • Frames are grouped into radio transmission time intervals (TTI), which are either 10 ms or 20 ms long, depending on the application and data rate.

Synchronization Frames

  • UMTS uses special synchronization channels to maintain timing and alignment between the UE (User Equipment) and Node B (Base Station).
  • Primary Synchronization Channel (P-SCH): Helps the UE acquire slot timing.
  • Secondary Synchronization Channel (S-SCH): Provides frame timing and scrambling code group information.

Conclusion

By comprehending the various UMTS frame structures, you can optimize data transmission and achieve better synchronization in 3G networks. Mastering this topic enables a deeper insight into how frames influence overall network performance.
