WCDMA/UMTS OVSF Codes Explained

wcdma
ovsf code
channelization
umts
wireless communication

Understanding OVSF Codes

OVSF stands for Orthogonal Variable Spreading Factor. These codes are also known as channelization codes and are primarily used to separate data and control channels originating from the same User Equipment (UE).

  • Key Function: Preserves orthogonality between control and data channels, minimizing interference.

Key Features of OVSF Codes in WCDMA

OVSF codes bring several advantages to WCDMA systems:

  • Variable Spreading Factor: OVSF codes allow the spreading factor (which determines data rate) to be dynamically adjusted.
  • Maintained Orthogonality: Crucially, orthogonality is maintained even when using different spreading codes of varying lengths.

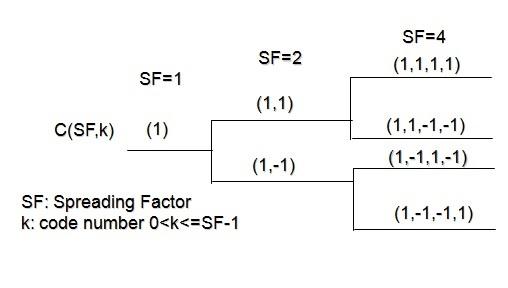

  • Code Tree Selection: Codes are chosen from a pre-defined code tree based on the required data rate and available channel numbers.

OVSF code

OVSF Code Properties and Usage

Code OVSF (channelisation code)Property
Orthogonal propertyHelps to reduce interference.
Correlation propertiesDo not have good correlation properties. Needs additional long codes. Walsh code is an example.
UsageUplink: separation of DPDCH and DPCCH from same UE. Downlink: separation of DL connections to different users within one cells.
LengthUplink: 4-256 Downlink: 4-512
Number of codesNumber of codes under one scrambling code = spreading factor
SpreadingIncreases bandwidth
