Wi-Fi 7 Device Testing: Non-Signaling vs. Signaling Tests

wi-fi 7
testing
non signaling
signaling
wireless

In the rapidly evolving landscape of wireless technology, testing methods play a crucial role in ensuring that devices meet performance and compliance standards. With the advent of Wi-Fi 7, two common testing methods are non-signaling and signaling tests. Each approach serves a specific purpose, offering different insights into a device’s capabilities.

Non-Signaling Test

In non-signaling testing, the device under test (DUT) is configured in a special test mode where normal network connection procedures (like authentication, association, and data transfer) are bypassed. Instead, direct control over the transmitter and receiver is enabled, allowing more granular testing of physical layer performance.

Key Characteristics

  • Test Mode Operation: The device is placed into a test mode where it listens to direct control commands without needing to establish a full connection to an access point (AP).

  • Controlled Environment: Measurements focus on signal quality, modulation accuracy, and spectral emissions without interference from higher layers.

  • Metrics Tested: Key performance indicators such as transmit power, frequency error, modulation accuracy (EVM), and spectrum mask compliance can be measured.

  • Efficiency: Since there is no need to handle the protocol overhead, non-signaling tests are faster and more efficient for testing the physical layer (PHY).

  • Usage: Commonly used in manufacturing and calibration testing to ensure that the radio components are functioning as expected.

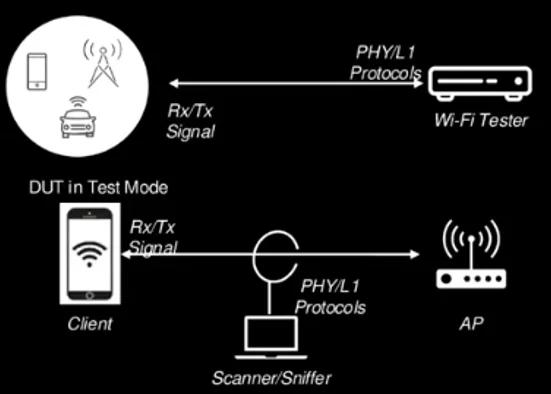

Non-Signaling Test

Image courtesy: Keysight Technologies, Inc.

In Wi-Fi 7, the following can be performed using this test:

  • Non-signaling tests may check MCS (Modulation and Coding Scheme) support, MU-MIMO performance, and 160 MHz/320 MHz bandwidth operation.

  • Testing higher-order modulation like 4096-QAM (Quadrature Amplitude Modulation) accuracy would be a crucial part of non-signaling tests in Wi-Fi 7 devices.

Signaling Test

Signaling tests involve a complete end-to-end communication scenario where the DUT behaves as if it is connected to a real network. The device interacts with an access point (or a test system simulating one) to perform a full set of protocol procedures, including authentication, association, and data transmission.

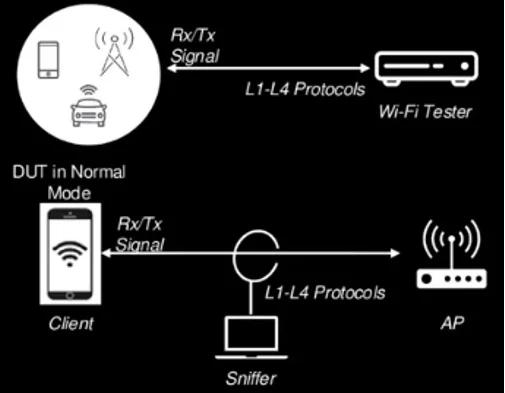

Signaling Test

Image courtesy: Keysight Technologies, Inc.

Key Characteristics

  • Full Network Simulation: The device goes through the entire process of connecting to a Wi-Fi network, allowing testing of both the physical and upper layers.

  • Protocol Compliance: Signaling tests are used to check the DUT’s compliance with the full Wi-Fi 7 protocol stack, including MAC (Medium Access Control) and higher layers like TCP/IP.

  • Metrics Tested: Metrics like throughput, latency, handover performance, and packet error rate (PER) are measured. It also tests features like OFDMA (Orthogonal Frequency Division Multiple Access) and multi-link operation in real-world conditions.

  • Realistic Environment: Since signaling tests simulate an actual network, they are useful for testing how a device performs in real-world usage scenarios, including interference and network congestion.

  • Usage: Often used in field testing, certification, and validation of devices to ensure they meet industry standards and work well in actual user environments.

In Wi-Fi 7 it helps in the following:

  • Signaling tests would focus on validating multi-link operation (MLO), higher throughput capabilities (46 Gbps), low-latency applications, and overall compliance with IEEE 802.11be standards.

  • Testing how well the device handles network congestion, power-saving mechanisms, and dynamic bandwidth management are critical aspects of signaling tests.

Summary

  • Non-Signaling Test: Focuses on Radio Frequency (RF) and physical layer performance without the need for a full network connection. Used in manufacturing and calibration to ensure hardware functionality.

  • Signaling Test: Involves full protocol stack testing, ensuring the device behaves correctly in real-world scenarios, including interactions with access points and network conditions.

  • Together, these methods ensure that Wi-Fi 7 devices meet the stringent performance and protocol requirements necessary for next-generation wireless networks, ensuring users experience faster speeds, lower latency, and greater reliability.
