Interoperability Testing: A Comprehensive Guide

Interoperability testing is a crucial process that ensures different systems, devices, or components can work together effectively. This article delves into the basics of interoperability testing, covering various aspects like WLAN, WiMAX, LTE, and IoT interoperability.

This type of testing addresses key scenarios:

• Verifying compatibility between systems from different manufacturers.
• Ensuring a sub-system integrates seamlessly with the entire system.
• Testing devices featuring multiple wireless protocols, such as WLAN and LTE enabled IoT devices.

The general approach for interoperability testing is outlined in the ETSI EG-202-237 document.

Key Characteristics of Interoperability Testing

Here’s a breakdown of the defining features of interoperability testing:

• Testing Boundaries: The Equipment Under Test (EUT) and the Qualified Equipment (QE) clearly define the scope of the testing process.
• Vendor Diversity: The EUT and QE should originate from different vendors, suppliers, or product lines to ensure true interoperability.
• Normal Interfaces: Tests are performed via standard interfaces used for user monitoring and control.
• Functional Focus: The tests primarily assess functionality from the user’s perspective (whether a human or a software application). Tests are not conducted at a protocol layer level. Conformance testing is used to assess the RF, PHY (Layer 1) and MAC (Layer 2).
• Interface Simulation: Various interfaces are simulated, including Man-Machine Interfaces (MMIs), Application Programming Interfaces (APIs), and protocol service interfaces.

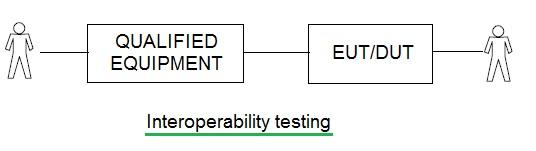

Interoperability Testing Block Diagram

Below is a basic block diagram illustrating interoperability testing with a single qualified equipment. More complex setups involving two or three qualified equipments may be required depending on the specific test requirements.

Developing Interoperability Tests: A Step-by-Step Approach

Before commencing the tests, a well-defined procedure is essential. The following steps are typically followed when developing interoperability tests:

• Specify Abstract Architecture (AS)
• Prepare a Draft Interoperable Features Statement (IFS)
• Specify Test Suite Structure (TSS)
• Develop Test Purposes (TP)
• Develop Test Cases (TC)
• Validate the TCs
• Finalize the Interoperable Features Statement (IFS)

Interoperability Testing and Compliance Testing

Interoperability testing is often conducted in conjunction with compliance testing to ensure comprehensive verification.

IoT Interoperability Testing: An Example

Consider the case of Internet of Things (IoT) interoperability testing. IoT platforms enable communication between diverse wireless devices and systems over the internet.

For example, an IoT device utilizing both WLAN and LTE protocols can communicate with a WLAN network on one side and an LTE cellular network on the other.

Therefore, interoperability testing of this IoT device (EUT) would involve testing with both WLAN and LTE QEs. Refer to cellular IoT documentation for further details.

Similar interoperability tests are carried out for other wireless standards, such as WiMAX, GSM, and Zigbee. This occurs once Test Cases (TCs) are well-defined and Qualified Equipments (QEs) are available.
