Wi-Fi 7, also known as IEEE 802.11be or Extremely High Throughput (EHT), is the next generation of Wi-Fi, building on the advancements of Wi-Fi 6 (802.11ax). Wi-Fi 7 aims to deliver significantly higher speeds, lower latency, and improved efficiency when handling multiple devices at once.

It’s designed for a wide range of applications, including ultra-high-definition video streaming, augmented and virtual reality (AR/VR), online gaming, and other scenarios that demand high bandwidth and low latency.

Key Features of Wi-Fi 7

  • Higher Data Rates: Wi-Fi 7 supports data rates up to 30 Gbps, a significant jump from Wi-Fi 6. This is thanks to wider channels, higher modulation schemes, and multi-link operation.
  • Wider Channel Bandwidth: It expands the maximum channel width to 320 MHz, doubling the 160 MHz channels used in Wi-Fi 6. This allows more data to be transmitted in each channel.
  • Higher Modulation Scheme: Wi-Fi 7 uses 4096-QAM (Quadrature Amplitude Modulation), up from 1024-QAM in Wi-Fi 6. This enables higher data throughput by packing more bits into each signal.
  • Multi-Link Operation (MLO): Enables simultaneous transmission and reception over multiple frequency bands (2.4 GHz, 5 GHz, and 6 GHz). This improves speed, reliability, and reduces latency by dynamically managing traffic across available links.
  • Enhanced MU-MIMO: Improves the Multi-User, Multiple Input, Multiple Output (MU-MIMO) capabilities by supporting up to 16 spatial streams, enhancing performance in dense environments.
  • Advanced OFDMA: Enhances Orthogonal Frequency Division Multiple Access (OFDMA) with improved scheduling and resource allocation, which optimizes bandwidth usage and reduces latency.
  • Target Wake Time (TWT) Enhancements: Improves energy efficiency by allowing devices to schedule their wake-up times for communication, reducing power consumption, especially in IoT devices.

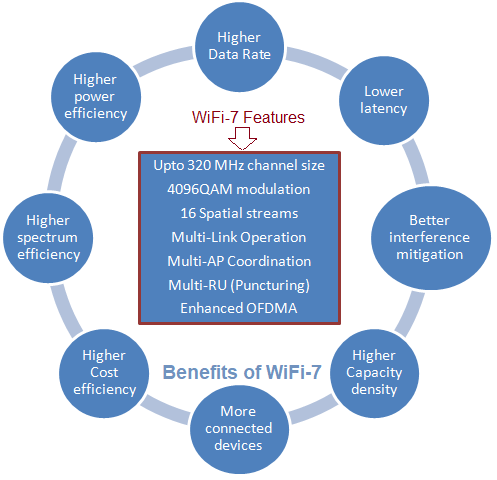

Benefits of WiFi-7

Advantages of Wi-Fi 7

Here are the benefits of Wi-Fi 7 technology:

  1. Ideal for Data-Intensive Applications: With support for data rates up to 30 Gbps, Wi-Fi 7 is perfect for applications like 8K video streaming, AR/VR, and large file transfers, providing a better user experience.
  2. Reduced Latency: The use of multi-link operation and improved OFDMA reduces latency, making Wi-Fi 7 suitable for real-time applications like online gaming, video conferencing, and remote control of industrial equipment.
  3. Improved Handling of Multiple Devices: Enhanced MU-MIMO and OFDMA allow Wi-Fi 7 to handle more devices simultaneously with better efficiency. This is especially beneficial in crowded environments like offices, stadiums, and smart homes.
  4. Maximized Spectrum Availability: By leveraging the 6 GHz band (introduced in Wi-Fi 6E) along with the 2.4 GHz and 5 GHz bands, Wi-Fi 7 maximizes spectrum availability, leading to less interference and better overall performance.
  5. Backward Compatibility: Wi-Fi 7 maintains backward compatibility with previous Wi-Fi standards (Wi-Fi 6, Wi-Fi 5, etc.), ensuring that older devices can still connect, though without the performance enhancements.

Disadvantages of Wi-Fi 7

Here are the drawbacks of Wi-Fi 7:

  1. Higher Initial Cost: Devices supporting Wi-Fi 7 will initially be more expensive due to the advanced hardware required, including additional antennas, more powerful processors, and enhanced RF components.
  2. Increased Complexity: The introduction of new features like multi-link operation and 4096-QAM adds complexity to network management and device configuration, requiring more sophisticated software and hardware solutions.
  3. Increased Power Consumption: Higher data rates and advanced features, such as increased spatial streams and higher modulation, can lead to increased power consumption, which may impact battery life in mobile devices.
  4. Regulatory Dependencies: The full benefits of Wi-Fi 7, particularly with the use of the 6 GHz band, depend on regulatory approval in various regions. In areas where the 6 GHz band is not available, performance gains may be limited.
  5. Requires New Hardware: To fully utilize Wi-Fi 7’s capabilities, both the access point and connected devices must support the standard. This requires a transition period as manufacturers adopt the new technology.

Conclusion

Wi-Fi 7 represents a major step forward in wireless communication, offering unprecedented speeds, efficiency, and capacity to meet the demands of future applications. However, the deployment and adoption of Wi-Fi 7 will involve considerations around cost, power consumption, and regulatory factors.

Therefore, it is essential to weigh these advantages and disadvantages when planning for the next generation of Wi-Fi networking.
