RF switches are crucial components for signal routing in RF systems. This article explores the basics of different RF switch types, focusing on their construction, advantages, disadvantages, and typical applications.

There are two main categories of RF switches:

  • Electro-mechanical RF switches
  • Solid-State RF switches

Solid-state switches can be further broken down into PIN diode, FET, and hybrid types. The classification is primarily based on the core components used in their design.

  • Electro-mechanical: These switches rely on physical, mechanical contacts to make or break the connection.
  • Solid-state: These switches use solid-state devices like silicon diodes, GaAs FETs, or PIN diodes to control the signal path.

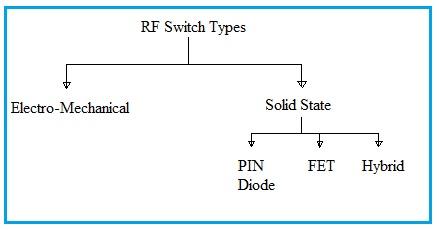

RF Switch Types

RF Switch Types Based on Topology

Based on their topology, RF switches are of two main types:

  • Multiplexers: e.g., 4x1, 8x1, etc.
  • Relays: e.g., SPST, SPDT, SP3T, etc.

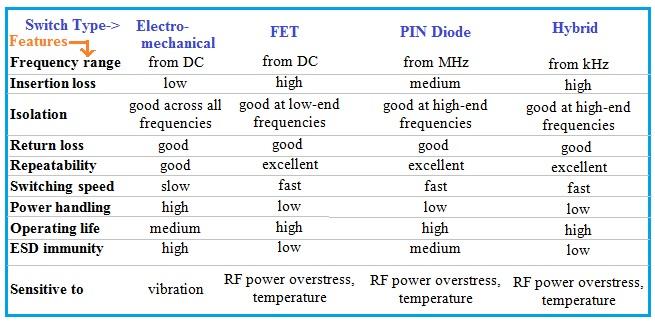

When selecting the appropriate RF switch for a particular application, several key parameters and features need to be considered. These are summarized in the table below.

Features of RF Switch Types

RF Switch Types Based on Architecture

RF switches can also be categorized based on their architecture:

  • Absorptive
  • Reflective

RF Switch Types Based on Mechanical Layout

Based on mechanical layout, RF switches are available in two main formats:

  • Connectorized
  • Drop-in switch modules

Detailed Look at RF Switch Types

RF switches are essential in RF and microwave systems, enabling signal routing between different paths. Let’s dive deeper into the main types of RF switches:

Electro-Mechanical RF Switches

These switches use mechanical relays to physically connect or disconnect signal paths. They typically involve moving parts like springs and contacts.

Applications:

  • Test and measurement equipment
  • High-power RF applications such as radar and broadcasting

Advantages:

  • Excellent isolation and low insertion loss
  • High power handling capacity

Disadvantages:

  • Slower switching speed compared to solid-state switches
  • Limited operational lifetime due to mechanical wear

Solid-State RF Switches

These switches use semiconductor devices like PIN diodes or FETs to control the signal path electronically. They have no moving parts, leading to faster operation.

Applications:

  • Wireless communication systems
  • Consumer electronics like smartphones

Advantages:

  • High-speed switching
  • Compact size and high reliability

Disadvantages:

  • Higher insertion loss compared to electro-mechanical switches
  • Limited power handling capacity

PIN Diode RF Switches

These switches utilize PIN diodes, which act as controllable resistors to switch RF signals. The diode’s impedance is controlled by an applied bias voltage.

Applications:

  • RF front ends for telecommunications
  • Radar systems

Advantages:

  • Excellent performance at high frequencies
  • High-speed operation

Disadvantages:

  • Requires a DC biasing network
  • May introduce higher insertion loss in certain configurations

FET-Based RF Switches

These switches use Field Effect Transistors (FETs) to electronically switch signal paths. They are commonly implemented in integrated circuits (ICs).

Applications:

  • Wireless communication systems
  • IoT devices

Advantages:

  • Extremely fast switching speeds
  • Low power consumption
  • Can be integrated with other components

Disadvantages:

  • Limited power handling
  • Performance may degrade at very high frequencies

Hybrid RF Switches

These switches combine electro-mechanical and solid-state switching technologies to leverage the advantages of both. Electro-mechanical components handle high power, while solid-state components ensure fast switching.

Applications:

  • Advanced radar systems
  • Aerospace and defense applications

Advantages:

  • Optimized performance for high-power and high-speed applications
  • Greater flexibility in design

Disadvantages:

  • Increased complexity and cost

Conclusion

Each type of RF switch caters to specific needs, depending on requirements like speed, power handling, isolation, and cost. Selecting the right RF switch involves balancing these characteristics based on the intended application.
