FET RF Switch vs PIN Diode RF Switch: A Comparison

rf switch
fet
pin diode
solid state
switch

This page compares FET RF Switches and PIN Diode RF Switches, highlighting the key differences between them. Both are solid-state devices, making these switches solid-state switches. A combination of both FET and PIN diode-based switches is known as a hybrid switch.

FeaturesFET RF SwitchPIN Diode RF Switch
ConstructionUses GaAs FET devices.Uses PIN diode devices.
Working OperationA FET switch creates a channel (depletion layer) allowing current to flow from the Drain terminal to the Source terminal of the FET.A PIN diode consists of a high resistivity intrinsic layer sandwiched between P (positively charged) and N (negatively charged) materials.

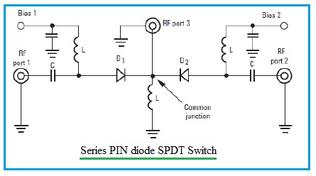

SPDT Switch Schematic DiagramsFET SPDT switch This is a SPDT type simple schematic using FETs. Other configurations include double stack structure (two FETs in series), hybrid types, etc.PIN diode SPDT switch This is a series PIN diode RF switch. Other configurations are shunt type, series-shunt type, and anti-series type, etc.
Operating FrequencyFrom DCFrom MHz
Insertion LossHigherMedium
IsolationGood at lower end frequenciesGood at higher end frequencies
RepeatabilityExcellentExcellent
Return LossGoodGood
Switching SpeedFasterFaster
Power HandlingLowerLower
Life of SwitchHigherHigher
ESD ImmunityLowerMedium
