EMI filters are critical for suppressing noise in electronic systems, ensuring electromagnetic compatibility. This guide explains their design principles, working operation, and applications.
What is an EMI Filter?
EMI filters are designed to attenuate or suppress electromagnetic interference by filtering out unwanted electromagnetic noise or signals from the power supply or signal lines of electronic devices. An EMI filter circuit typically comprises passive components such as capacitors, inductors, and resistors, arranged in a specific configuration. This configuration selectively blocks or attenuates certain frequencies while allowing desired signals to pass through.
EMI Filter Working Operation
The working operation of an EMI filter circuit involves selectively attenuating unwanted electromagnetic interference while allowing desired signals to pass through with minimal distortion.
The specific configuration and component values of the EMI filter circuit depend on the application requirements, including the frequency range of the interference to be filtered, the impedance characteristics of the power supply or signal lines, and the regulatory standards or EMC requirements that must be met.
In general, EMI filter circuits operate by presenting a high impedance to EMI signals at frequencies of interest while offering a low impedance path for the desired signals.

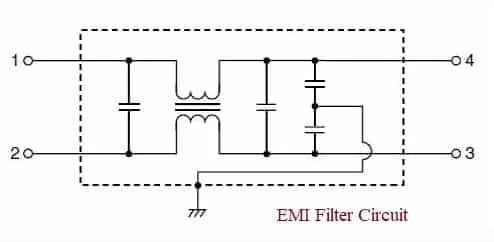

As shown in the figure, an EMI filter consists of passive components, including capacitors and inductors, connected to form LC circuits.
The inductor(s) allow DC or low-frequency currents to pass through while blocking harmful, unwanted high-frequency currents. The capacitors provide a low impedance path to divert the high-frequency noise away from the input of the filter, either back into the power supply or into the ground connection.
Conclusion
In summary, the function of an EMI filter is paramount in ensuring the reliable operation and regulatory compliance of electronic devices and systems. By effectively attenuating electromagnetic interference (EMI) while allowing desired signals to pass through, EMI filters protect sensitive equipment from external disturbances and minimize the risk of electromagnetic compatibility (EMC) issues.
