Attenuators play a crucial role in RF (Radio Frequency) circuit designs to control signal levels and manage impedance matching. The attenuators are of two types: fixed and variable, depending on the applied attenuation. The two common types of fixed attenuators are the 3dB attenuator and the 6dB attenuator. These attenuators are often implemented using chip resistors arranged in Pi and T shapes.

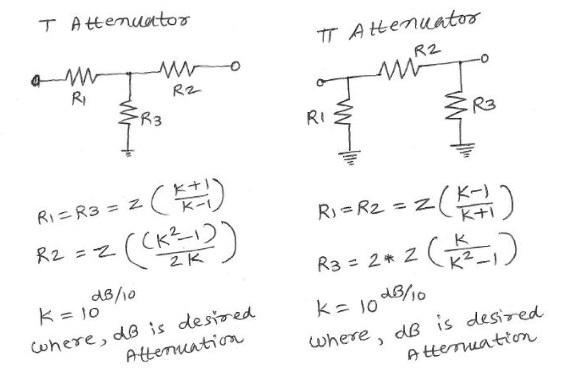

The formula to calculate resistance values as per ‘PI’ and ‘T’ shape designs is as follows. The formula can be used to calculate chip resistor values in both PI and T designs. Moreover, they can also be used to calculate attenuation in dB as per chip resistor values mounted in Pi and T shape designs.
A Pi-attenuator consists of three resistors arranged in the shape of the Greek letter ‘Pi’ (π). A T attenuator is named for its T-shaped configuration, formed by three resistors.

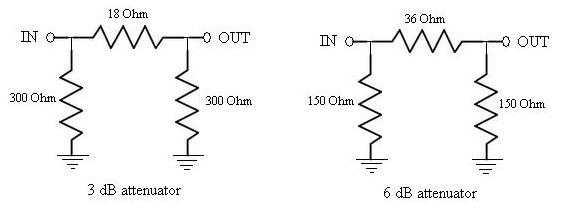

As shown in the figure, a 3 dB attenuator in Pi-shape consists of two resistors (R1, R3) of value 300 Ohm and R2 having a value of 18 ohm. It provides 3 decibels of attenuation. This level of attenuation is often used for balanced power splitting or when a moderate reduction in signal level is required.
6dB Attenuator Circuit Design
As shown in the figure, a 6 dB attenuator in Pi-shape consists of two resistors (R1, R3) of value 150 Ohm and R2 having a value of 36 ohm. A 6dB attenuator is designed to provide approximately 6 decibels of attenuation. This can be useful when a higher level of signal reduction is needed.
Applications of 3dB and 6dB Attenuators
The generic applications of Pi attenuators are as follows:
- Impedance Matching: Pi attenuators are often used for impedance matching in RF circuits. They help ensure that the input and output impedances are properly matched, minimizing signal reflections.
- Equal Splitting of Power: In certain applications, a Pi attenuator can be used to evenly split power between two paths.

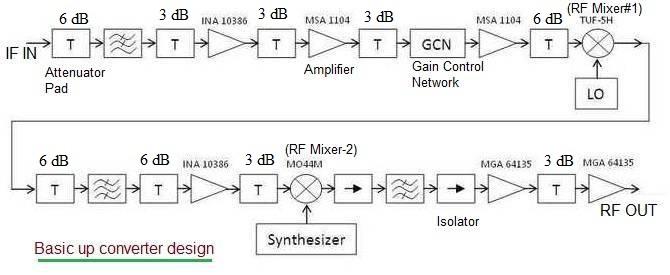

These attenuators, with their different configurations and attenuation levels, provide flexibility in RF circuit designs, allowing engineers to tailor signal levels to meet specific system requirements. One such use case is RF up converter design as shown in the figure. Here both 3dB and 6 dB attenuators are used in the RF chain to take care of desired power levels at various points as per P1dB requirements.
Applications of Attenuators in RF Circuit Designs
- Signal Level Adjustment: Attenuators are commonly used to adjust signal levels in RF circuits to meet the requirements of different components within the system.
- Matching and Optimization: Attenuators help optimize impedance matching in RF circuits, preventing signal reflections and ensuring efficient power transfer.
- Balancing Signals: In certain cases, attenuators are used to balance signals or distribute power evenly across different paths.
In summary, these fixed attenuators, with their different configurations and attenuation levels, provide flexibility in RF circuit designs, allowing engineers to tailor signal levels to meet specific system requirements.
