IC 741 Op-Amp: Pin Diagram and Application Circuits

op amp
analog circuit
circuit design
amplifier
ic 741

The 741 is a very common and well-known IC, an operational amplifier (op-amp). It’s an electronic component used in a wide range of analog circuit applications.

Let’s explore the pin diagram of the IC 741 and its application notes, complete with circuit diagrams. The 741 IC is designed to amplify the voltage difference between its two input terminals – inverting and non-inverting. It produces an output voltage based on its amplification factor, or gain.

The 741 op-amp boasts high input impedance and low output impedance. It’s used for various tasks such as amplifying weak signals, adding or subtracting voltage levels, buffering, and much more.

741 IC Pin Diagram

The 741 op-amp comes in an 8-pin dual in-line package (DIP). It requires dual power supplies, with common supply voltages ranging from around +/-5V to +/-18V.

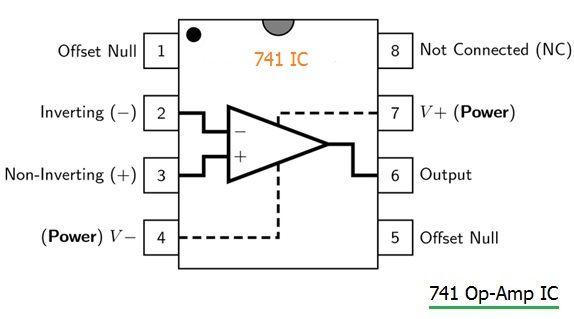

741 Op-Amp IC

Pin NumberDescription
1Offset Null
2Inverting (-)
3Non-inverting (+)
4Power (V-)
5Offset Null
6Output
7Power (V+)
8NC (Not Connected)

Op-Amp Circuit Diagrams

Let’s explore op-amp circuits that function as buffers, differentiators, integrators, summing amplifiers, differential amplifiers, and filters (e.g., LPF, HPF).

Op-Amp Buffer Circuit

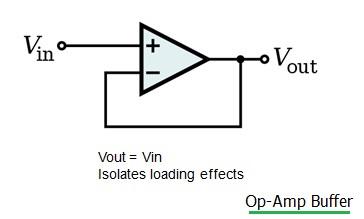

Op-Amp Buffer

The buffer circuit is used to isolate or “buffer” stages of an electronic circuit. It provides high input impedance and low output impedance.

Op-Amp Differentiator Circuit

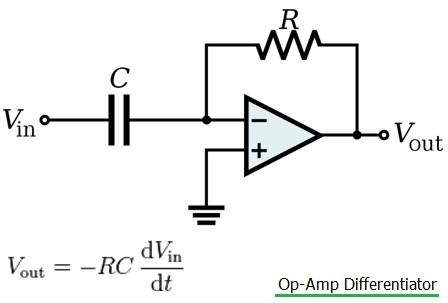

Op-Amp differentiator

This circuit performs mathematical differentiation on the input signal. It’s used where the rate of change of a signal needs to be emphasized.

Op-Amp Integrator Circuit Diagram

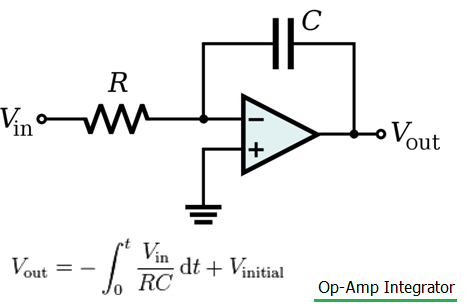

Op-Amp Integrator

It performs mathematical integration on the input signal. It’s used in applications like waveform generation and signal integration.

Op-Amp Summing Amplifier Circuit

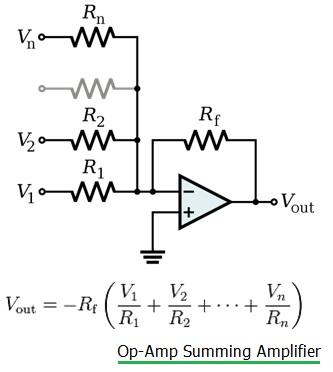

Op-Amp summing amplifier

This op-amp circuit combines multiple input signals, each with its own scaling factor. It produces the sum of all the input signals, and is often used for audio mixing.

Op-Amp Differential Amplifier Circuit

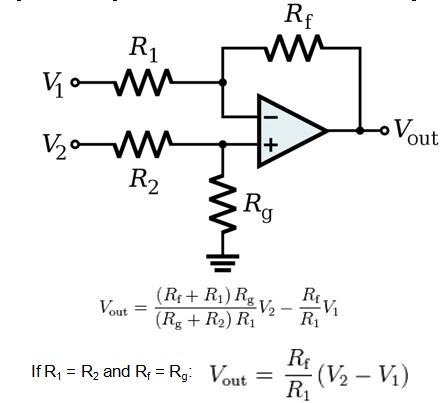

Op-Amp differential amplifier

It amplifies the difference between input signals. This configuration is mainly used where noise rejection is crucial, such as in instrumentation amplifiers.

Op-Amp Low Pass Filter and High Pass Filter Circuits

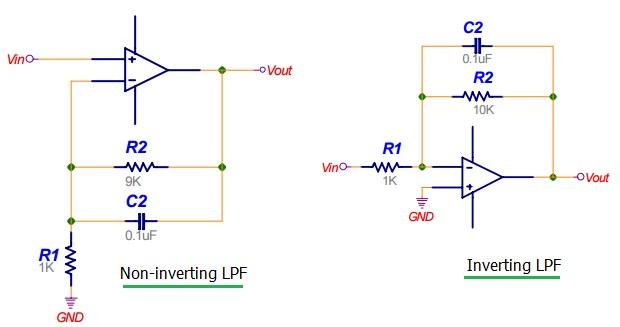

Op-Amp LPF

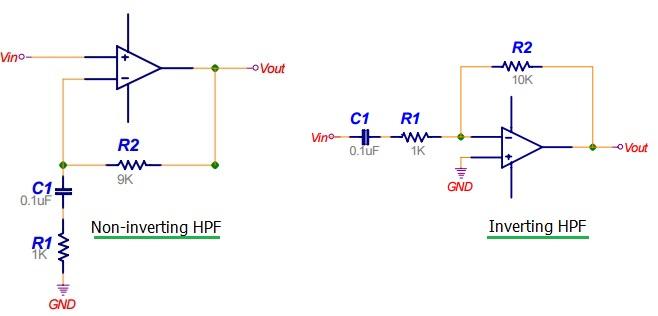

Op-Amp HPF

As shown, op-amps can be used to create active filters of different types, such as low-pass and high-pass filters. They can also be used to create band-pass and band-reject filters. They find applications in signal processing and communication circuits.

The circuits mentioned above are just a few applications of op-amps. The versatility of op-amps makes them fundamental components in analog electronics. This allows engineers to design op-amp circuits that perform a wide variety of functions.
