Understanding Zigbee RF4CE: Radio Frequency for Consumer Electronics

zigbee rf4ce wireless technology remote control consumer electronics

Let’s dive into Zigbee RF4CE, which stands for Radio Frequency for Consumer Electronics. This is all about using Zigbee technology for remote controls and other consumer devices.

About Zigbee RF4CE

The RF4CE consortium was formed in 2009. This consortium and the Zigbee Alliance teamed up to create a standard for radio frequency remote controls. The goal was to control various consumer devices like TVs, audio systems, and set-top boxes using RF technology.

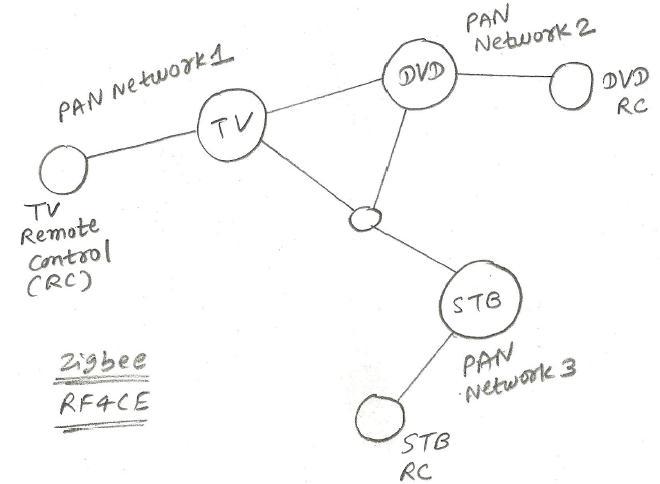

Zigbee RF4CE network

Fig.1, Typical Zigbee based RF4CE network

Zigbee RF4CE protocol stack utilizes 2.4GHz transceiver compliant to 802.15.4 for remote control devices and their targets (audio and video devices). The second RF4CE application profile was introduced in 2012, compliant with the Zigbee standard.

Figure 1 illustrates the modules inside a Zigbee RF4CE remote controller device used to control a TV/LCD. It also shows how a remote control can manage a DVD player and Set-Top Box (STB).

Zigbee Frame Structure

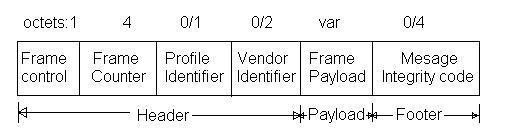

Zigbee RF4CE frame

Fig.2 Zigbee Frame

The Zigbee frame is composed of a header, payload, and footer. The header includes frame control, frame counter, profile identifier, and vendor identifier. The footer carries the message integrity code, ensuring the data hasn’t been tampered with.

Key Features of Zigbee RF4CE

Here are some of the features that make Zigbee RF4CE tick:

  • Operates at 2.4GHz frequency using three channels.
  • Compliant with IEEE 802.15.4 standard.
  • Designed with power saving in mind.
  • Supports a multi-star topology with Inter-PAN communication.
  • Employs AES-128 security standard for secure communication.
  • Features a simple RC control profile.
  • Offers various transmission options: broadcast, unicast, acknowledged, unacknowledged, secured, and unsecured.
  • Supports a pairing mechanism for easy device association.

Zigbee: A Quick Overview

Let’s quickly recap the basics of Zigbee.

Zigbee Network

Zigbee networks are designed for low-power, low-data-rate applications. They’re often used in home automation, industrial control, and other similar scenarios.

Zigbee Protocol Stack

The Zigbee protocol stack defines how devices communicate within a Zigbee network. It includes the physical layer (PHY), media access control layer (MAC), network layer, and application layer.

Zigbee Physical Layer (PHY)

The physical layer defines the radio frequencies, modulation techniques, and data rates used for wireless communication.

Zigbee Frame

As mentioned before, Zigbee frames are structured with a header, payload, and footer.

Zigbee MAC Layer

The MAC layer handles channel access, addressing, and frame formatting.

Zigbee Frequency Bands

Zigbee operates in various frequency bands, including 2.4 GHz, 915 MHz, and 868 MHz.

Zigbee Conformance

Zigbee devices must conform to certain standards to ensure interoperability between different manufacturers.

Zigbee AODV Protocol

AODV (Ad-hoc On-demand Distance Vector) is a routing protocol used in Zigbee networks to discover and maintain routes between devices.

Zigbee Products

You can find Zigbee technology in a wide range of products, including smart lights, thermostats, sensors, and remote controls.

Wireless Terms

Here’s a brief comparison with related technologies:

  • RF (Radio Frequency): A general term for wireless communication using radio waves.
  • Wireless: A broad term encompassing any technology that uses radio waves, microwaves, or other forms of electromagnetic radiation to transmit signals without wires.
  • Bluetooth: Another short-range wireless technology, commonly used for audio streaming and device pairing.
  • Lightwave RF: A wireless technology using radio frequencies to control lighting systems.
  • Z-Wave: A wireless communication protocol primarily used for home automation.
