This article breaks down the differences between Thunderbolt and HDMI, two common interface types used for connecting devices, especially for display purposes.
Introduction:
HDMI is a widely used display connector found on a variety of electronic devices. Thunderbolt, on the other hand, is primarily used for both video and data applications and is more commonly found on computers.
Thunderbolt Interface
Thunderbolt technology is a high-speed, dual-core I/O protocol designed to offer superior performance compared to older I/O technologies. It boasts a bi-directional speed of 10 Gbps and essentially supersedes the Firewire interface.
Image alt: Thunderbolt interface
Thunderbolt supports both data and video transmission over a single cable, utilizing dual protocols (PCI Express and DisplayPort). It allows daisy-chaining of up to 6 devices. This technology makes it possible to connect laptops to high-performance storage, displays, and multimedia devices via a single cable.
Key features of Thunderbolt:
- Compatible with existing DisplayPort devices.
- Utilizes native PCIe and DisplayPort protocol software drivers.
- Supports power delivery over the cable for bus-powered devices.
There are different versions of Thunderbolt, including Thunderbolt 1, Thunderbolt 2, and Thunderbolt 3, each offering improved data transfer speeds.
- Thunderbolt 1: Supports 10 Gbps bi-directional, dual-channel data transfer.
- Thunderbolt 2: Supports 20 Gbps.
- Thunderbolt 3: Supports 40 Gbps.
HDMI Interface
HDMI stands for High Definition Multimedia Interface. It is used to connect smart devices to displays and transmits both audio and video signals over a single cable.

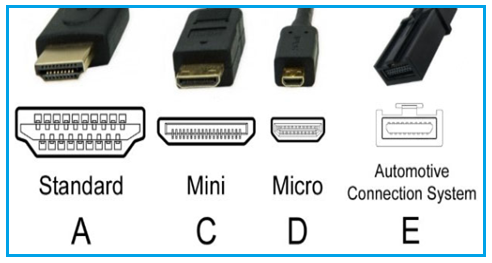

Image alt: HDMI Connector types
The image above shows the different HDMI connector types, including standard, Mini, Micro, and automotive connection systems.
Image alt: HDMI Connector pins
HDMI cable features:
- Audio formats: DTS, Dolby, etc.
- Video formats: 720p, 1080i, 1080p, 480p, etc.
- Supports PAL/NTPC TV standards
- Backward compatible with DVI
- Category 1: Supports a pixel speed of 75 MHz, bandwidth of 2.23 Gbps, and can carry 1080i uncompressed signals.
- Category 2: Supports a speed of 340 MHz and a bandwidth of 10.2 Gbps, supporting 1440p and WQXGA resolutions.
Difference between Thunderbolt and HDMI
The following table highlights the key differences between Thunderbolt and HDMI:
| Features | Thunderbolt | HDMI |
|---|---|---|
| Display Support | Supports two or higher resolution 5K displays. | Supports a single display at a maximum of 4K 60 Hz. |
| Connectivity | Supports both standard PCI Express and Mini DisplayPort on a single cable. | Supports both audio and video signals transfer over a single cable. |
| Connector Types | Thunderbolt 1, 2, and 3. Thunderbolt 1 and 2 support Mini DisplayPort shaped connectors. Thunderbolt 3 supports USB Type-C connectors. | HDMI Type A (Standard HDMI), Type C (Mini HDMI), Type D (Micro HDMI), and Type E (Automotive Connection System) based on the connector. |
| Refresh Rate | Thunderbolt 3 supports refresh rates of 30 to 240 Hz at resolutions up to 1440p and 4K from 30-120 Hz. | HDMI is limited to a 30 Hz refresh rate. HDMI 2.0 supports 1080p output at 144 Hz. |
| Universal Support | Initially, Thunderbolt was limited to Apple devices. Thunderbolt 3 supports other PCs and devices. | It is a universal standard for display interfaces, which is ubiquitous. |
| Speed | Thunderbolt 1 supports 10 Gbps, Thunderbolt 2 supports 20 Gbps, and Thunderbolt 3 supports 40 Gbps. | HDMI cat-1 supports a bandwidth of 2.23 Gbps, and HDMI cat-2 supports a bandwidth of 10.2 Gbps. |
| Distance | 20 Gbps cables support 1-2 meters. 40 Gbps cables support 0.5m to 2 meters. 10 Gbps cables support a maximum distance of up to 100 meters. | HDMI cat-1 supports 35 meters, and HDMI cat-2 supports 10 meters. |
