HDMI: Advantages and Disadvantages

This page explores the pros and cons of HDMI (High-Definition Multimedia Interface). We’ll cover the benefits, drawbacks, and some HDMI basics.

What is HDMI?

Introduction:

Here are the key features of the HDMI interface:

• HDMI stands for High-Definition Multimedia Interface.
• It’s a standard interface used to connect smart devices to displays.
  • Smart devices include laptops, smartphones, tablets, and more.
  • Displays include PC monitors, TVs, projectors, etc.
• It supports various audio formats like DTS and Dolby.
• It supports video formats such as 720p, 1080i, 1080p, and 480p.
• It’s compatible with PAL/NTSC TV standards.
• It’s backward compatible with DVI (Digital Visual Interface).

There are two main categories of HDMI cables:

• Category-1 HDMI Cable: Supports a pixel speed of 75 MHz and a bandwidth of 2.23 Gbps. It can carry an uncompressed 1080i signal.
• Category-2 HDMI Cable: Supports a pixel speed of 340 MHz and a bandwidth of 10.2 Gbps. It can handle 1440p and WQXGA resolutions.

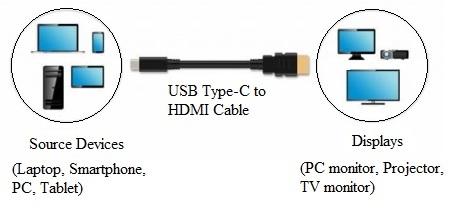

HDMI connector-based cables are often used to interface with USB Type-C and VGA connector-based smart devices. Specialized interface cables are designed to facilitate these connections.

Benefits (Advantages) of HDMI

Here are the advantages of using HDMI:

• Combined Audio and Video: HDMI cables can transmit both audio and video signals, eliminating the need for separate cables.
• Simplified Connectivity: It reduces cable clutter by using a single cable instead of multiple ones.
• Wide Device Support: HDMI is widely available on devices like laptops and tablets, allowing them to be easily connected to larger TVs for viewing content on a bigger screen.
• Lossless Transmission: It offers a lossless transmission, resulting in better quality video.
• Sharper Text: Text appears sharper and clearer on the display.
• Two-Way Communication: HDMI supports two-way communication with automatic configuration. This eliminates the need for manual adjustments to identify the best resolution or audio format.
• Authentication and Encryption: It provides authentication and encryption of the data transmitted through the cables.
• Signal Integrity: HDMI ensures signal integrity, allowing for the transmission of HD content without degradation or alteration.
• Deep Color Depths: It can deliver deep color depths due to its support for various bit formats (e.g., 10/12/16 bits).
• Uncompressed Signals: HD signals are transmitted without compression, preserving the original quality.

Drawbacks (Disadvantages) of HDMI

Here are the disadvantages of HDMI:

• Distance Limitations: HDMI Category-1 supports distances of about 35 meters, while Category-2 supports only about 10 meters.
• Authentication Delay: Sometimes, authentication delays can lead to blank screens.
• Cost: HDMI cables can be more expensive compared to analog cables.
• Multi-Location Applications: Running multiple applications spread across different locations simultaneously can be challenging.
• DVI Interfacing: When used for DVI interfacing, a separate audio cable is required. An HDMI-DVI adapter is also necessary.
