Resonant vs. Non-Resonant Metamaterials: A Comparison

metamaterial
resonant
non-resonant
electromagnetic wave
refractive index

This article delves into the differences between resonant and non-resonant metamaterials. First, let’s define what metamaterials are.

Metamaterials are engineered materials that exhibit properties not found in naturally occurring substances. These properties often include:

  • Negative Index of Refraction (n): This means light bends in the opposite direction compared to normal materials.
  • Negative Permittivity (ε < 0) and Permeability (μ < 0): These are fundamental electromagnetic properties indicating how a material responds to electric and magnetic fields, respectively. When both are negative, we enter the realm of unique wave behavior.
  • Imaging Beyond Abbe’s Diffraction Limit (λ/2): This allows for imaging details smaller than half the wavelength of light, breaking a traditional resolution barrier.

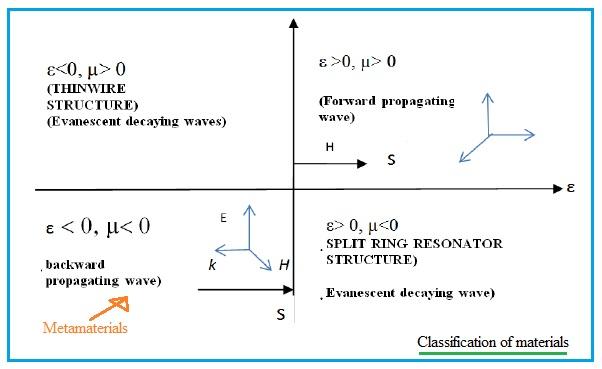

The figure below visually represents the classification of materials, highlighting the region where metamaterials reside.

classification of materials depicting metamaterials

Metamaterials are broadly classified into two main categories: resonant metamaterials and non-resonant metamaterials. Let’s explore each in detail.

Resonant Metamaterials

Resonant metamaterials achieve their unique properties through resonant structures. These structures are designed to interact strongly with electromagnetic waves at specific frequencies.

resonant metamaterial

Key characteristics of resonant metamaterials include:

  • Period Approximately λ/10: The size of the repeating unit in the metamaterial is typically around one-tenth of the wavelength of the electromagnetic radiation it interacts with. This scale is crucial for achieving the desired resonance.
  • Oscillating Currents Emulate Atomic Resonances: The behavior of electrons within the conductive elements of the metamaterial mimics the resonant behavior seen in atoms, leading to strong interactions with electromagnetic fields.
  • Example: Left-Handed Metamaterials: These metamaterials exhibit a negative refractive index.
  • Refractive Index Less Than One: These metamaterials can have a refractive index less than one.

Non-Resonant Metamaterials

Non-resonant metamaterials, in contrast, rely on different mechanisms to achieve their properties. They don’t depend on strong resonances in the same way as their resonant counterparts.

non resonant metamaterial

Here’s a breakdown of their key features:

  • Period Can Be Much Less Than λ: The size of the repeating unit can be significantly smaller than the wavelength of the electromagnetic radiation.
  • No Current Oscillations or Wave Scattering: They don’t rely on oscillating currents or strong scattering of waves for their functionality.
  • Greater Tolerance to Structural Deformations: Non-resonant designs are often more robust and less sensitive to imperfections in the structure.
  • Fewer Magical Properties: When compare to resonant metamaterials non-resonant metamaterials have fewer magical properties.
  • Examples: Anisotropic Metamaterials, Hyperbolic Metamaterials: These materials exhibit different properties depending on the direction of propagation of electromagnetic waves.

Summary Table

FeatureResonant MetamaterialsNon-Resonant Metamaterials
PeriodApproximately λ/10Much less than λ
MechanismOscillating currents, atomic resonancesNo strong current oscillations or scattering
Tolerance to DeformationsLowerHigher
ExamplesLeft-handed metamaterialsAnisotropic, Hyperbolic metamaterials
