Metamaterial Antennas: Advantages and Disadvantages

metamaterial
antenna
rf
beam steering
wireless

This page explores the pros and cons of metamaterial antennas, outlining their benefits and limitations.

What is a Metamaterial Antenna?

Introduction:

  • Metamaterials are composite materials engineered to possess properties not typically found in naturally occurring materials.
  • Their behavior can be described using Maxwell’s equations.
  • Metamaterials are broadly categorized into resonant and non-resonant types.

metamaterial antennas

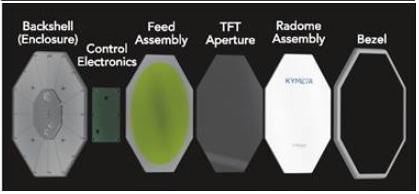

Figure 1 depicts the mTenna™ series of metamaterial antennas from KYMETA Corporation. It uses metasurface in a glass structure and thin structure with tunable metamaterial elements to create a holographic beam.

Benefits or Advantages of Metamaterial Antennas

Here are the key benefits of using metamaterial antennas:

  • Size Reduction and Bandwidth Enhancement: Metamaterial antenna designs can be significantly smaller (up to five times smaller) while offering a wider bandwidth compared to conventional antennas.
  • No Active Components Required: Unlike traditional phased array antennas, they don’t need active phase shifters or amplifiers, simplifying the design.
  • Wide-Angle Scanning and Excellent Beam Performance: They provide excellent beam performance with wide-angle scanning capabilities.
  • Electronically Controlled Steering and Polarization: Metamaterial antennas offer electronically controlled beam pointing and polarization adjustments.
  • Low Power Consumption: They consume very little power, making them suitable for energy-efficient applications.
  • Compact Form Factor: These antennas are flat, lightweight, and small in size, ideal for portable devices.
  • Software-Defined Steering: Beam steering is controlled via software, eliminating the need for bulky mechanical parts.
  • Planar Integration Compatibility: Metamaterial antennas are compatible with planar integration techniques, allowing for easy integration with other electronic components.

Drawbacks or Disadvantages of Metamaterial Antennas

The following points highlight the current limitations of metamaterial antennas:

  • Manufacturing Challenges: Large-scale manufacturing of metamaterial-based antennas remains a challenge.
  • Limited Wavelength Range: They typically operate effectively over a limited range of wavelengths.
  • Fixed Shape During Operation: The physical shape of the antenna cannot be altered during operation, limiting adaptability.
  • Lossy Characteristics: Metamaterials tend to be lossy, which can impact antenna efficiency.
