AMT vs. CVT Transmission: Key Differences Explained

transmission
amt
cvt
automotive
technology

This article explores the differences between Automated Manual Transmission (AMT) and Continuously Variable Transmission (CVT).

AMT Transmission | Automated Manual Transmission

AMT stands for Automated Manual Transmission.

AMT Transmission

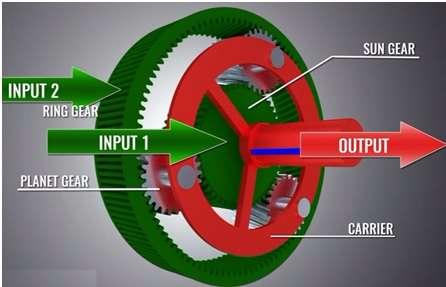

Figure 1: Planetary gear set used in AMT Transmission

  • The AMT transmission utilizes gears and clutches, much like a conventional manual gearbox.
  • The primary difference lies in the gear shifting mechanism. In an AMT, a control unit automates gear shifts, eliminating the need for manual intervention.
  • It automatically changes gear ratios as the vehicle moves.
  • AMT eliminates driver effort by automating clutch and gear shifting via a hydraulic process.
  • It has a limited number of gear ratios, typically 4, 5, or 6 speeds, similar to a manual transmission.
  • The AMT engine may not always operate at the optimal speed for maximum efficiency.

CVT Transmission | Continuously Variable Transmission

CVT stands for Continuously Variable Transmission.

CVT Transmission

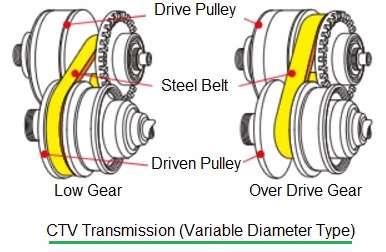

Figure 2: Commonly used CVT type i.e. variable diameter pulley transmission

  • Instead of gears, CVT uses variable diameter pulleys connected by a metal belt or chain.
  • One pulley connects to the engine, and the other connects to the drive wheels.
  • The pulleys are shaped like pairs of opposing cones.
  • Cones rotate due to centrifugal force and belt tension.
  • CVT is also an automatic transmission, but it offers an infinite number of gear ratios between minimum and maximum values.
  • Unlike AMT, CVT does not use fixed gear ratios.
  • CVT transmission incurs less power loss compared to AMT Transmission.
  • The CVT engine operates consistently at the most favorable speed for optimal efficiency.

Advantages and Disadvantages of CVT Transmission

Advantages:

  • Stepless Transmission
  • Smooth Drive
  • Better Fuel Consumption
  • Good Adaptability
  • Better Emission Control

Disadvantages:

  • Limited amount of torque
  • Higher cost
  • High wear
