This page explores the pros and cons of flexible waveguides, delving into their specific advantages and disadvantages. We’ll also touch upon the common merits and demerits associated with waveguide-based transmission systems in general.

Introduction to Waveguides

As illustrated in the figure below, a waveguide is essentially a hollow metallic conductor designed to carry high-frequency electromagnetic waves, specifically microwaves.

Waveguides typically operate within the radio frequency range of 300 MHz to 300 GHz. Functionally, they act as high-pass filters for frequencies.

Waveguide types-rectangular,circular

Rugged waveguides primarily come in two shapes: circular and rectangular. One challenge with waveguides is power loss due to induced current within the walls. This can be minimized by using low-resistance conducting materials in their construction.

Flexible waveguide

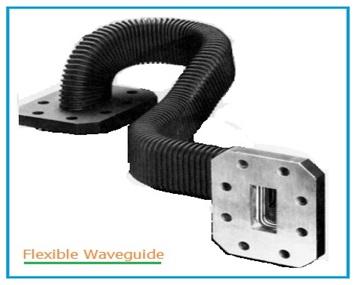

Figure 2 shows an example of a flexible waveguide.

Advantages of Flexible Waveguides

Here are the key advantages of using flexible waveguides:

  • Flexibility and Twistability: The primary advantage is, of course, their flexible and twistable nature.
  • Full Band Operation: They can operate across the entire designated frequency band.
  • Vibration Isolation: Flexible waveguides effectively isolate vibration and other mechanical movements, ensuring uninterrupted RF signal propagation. This is because they can stretch and compress as needed.
  • Ruggedness (Specific Types): Some flexible, non-twistable types are ruggedly constructed and offer lower insertion loss compared to other flexible waveguide designs.

Disadvantages of Flexible Waveguides

Despite their benefits, flexible waveguides also have some drawbacks:

  • Higher Insertion Loss: They generally exhibit higher insertion loss compared to rigid waveguide types.
  • Fragility: They are relatively fragile and require careful handling.
  • Jacket Requirement: Pressure-sealed flexible waveguides usually need an external jacket.
  • Higher Cost: They are often more expensive than other waveguide options.
  • Intermodulation Products: Jointed sections in flexible waveguides can introduce low-level intermodulation products, which can fall within the receiver band and degrade receiver performance.
