This page explains the difference between 4W and 2W telephone circuits. These terms are commonly used when discussing telephone systems.

  • 4W stands for 4 Wire.
  • 2W stands for 2 Wire.

2W Circuit Explained

Two wires are typically used between a telephone subscriber’s terminal (the phone itself) and the analog line interface (usually at the central office or exchange). This design minimizes the cost of the line cable. Importantly, both transmission (sending your voice) and reception (hearing the other person) occur over these same two wires of the local loop.

4W Circuit Explained

Four wires are used for longer distance trunks connecting different exchange branches. The reason for using four wires in this scenario is to isolate the transmitted and received signals from each other.

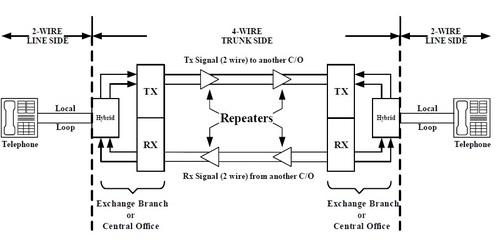

2W 4W telephone hybrid circuit

Image alt: 2W 4W telephone hybrid circuit

Hybrid Transformer: Making 2W and 4W Work Together

The separation of transmit and receive signals in the analog line interface at the central office (CO) is accomplished using a hybrid transformer. For example, the Motorola MC3419 IC can function as a hybrid transformer.
