DTE vs. DCE: Understanding Data Communication Equipment
Advertisement
This article clarifies the difference between DTE (Data Terminal Equipment) and DCE (Data Circuit-Terminating Equipment), terms commonly used in the context of communication networks. These concepts are crucial for understanding how information is transmitted and received.
DTE - Data Terminal Equipment
- DTE refers to the equipment that serves as the endpoint of an information flow in a communication network.
- DTE devices are typically located at or near the customer’s premises.
- Customers usually purchase or own these devices.
- Examples: Terminals, computers, laptops, routers, and bridges.
DCE - Data Circuit-Terminating Equipment
- DCE refers to the equipment responsible for transporting information across a communication medium.
- DCE devices sit between the DTE and the communication medium (e.g., fiber optic cable, twisted pair cable).
- They handle tasks like coding and clocking to ensure proper transmission and reception of information.
- DCE is also sometimes referred to as “Data Carrier Equipment.”
- Examples: Modems and switches.
Protocol Stack: DTE and DCE
The communication between DTE and DCE involves two primary layers within the protocol stack:
-
Physical Layer: This layer defines the electrical, mechanical, functional, and procedural specifications for the connection.
-
Data Link Layer (or MAC Layer): This layer manages error detection and flow control between the DTE and DCE.
(Refer to resources that describe the functions of the Physical layer and MAC layer for more details: PHY vs MAC )
Examples in Practice

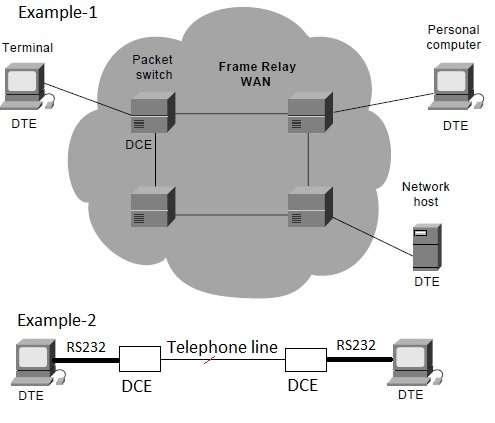

The following illustrates two common communication scenarios:
- Example #1: In a frame relay setup, the terminal acts as the DTE, while the packet switch functions as the DCE.
- Example #2: In a modem-based communication setup, the terminal is the DTE, and the modem is the DCE.
Key Differences: DTE vs. DCE
Feature | DCE (Data Communication Equipment) | DTE (Data Termination Equipment) |
---|---|---|
Clocking | Generates clock signals (according to speed requirements) | Accepts clock signals |
Example #1 (Leased Line) | V.35 and G.703 modem & exchange (modem & MUX) acts as DCE | Router acts as DTE |
Example #2 (Dial-up Setup) | Dial-up modem acts as DCE | Computer acts as DTE |
