LoRaWAN Frequency Bands and Channels in Russia (RU Region)
Advertisement
This page details the LoRaWAN frequency bands and channels specifically used in Russia (RU region). It also provides information on data rates and transmit power (EIRP). Keep in mind that LoRaWAN frequency bands, channels, EIRP, and data rate requirements vary depending on the region.
What LoRaWAN Frequency Bands are Used in Russia?
The RU864-870 band is the designated band for LoRaWAN systems in Russia. The specific channel frequencies utilized are 868.9 MHz and 869.1 MHz.

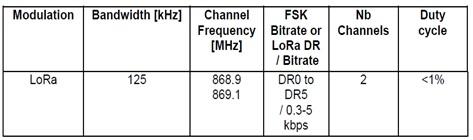

The above image illustrates a table detailing modulation, bandwidth (125 KHz), channels, bit rate, and duty cycle within this band.
LoRaWAN Data Rates in Russia
The following table showcases the bit rates or data rates applicable to LoRaWAN end devices operating in Russia.
LoRaWAN Transmit (Tx Power) and EIRP in Russia
The table presented below outlines the Transmit Power (Tx Power) and Effective Isotropic Radiated Power (EIRP) values for the LoRaWAN Russia region.
LoRaWAN Frequency Bands in Other Regions of the World
For comparison, here are some LoRaWAN frequency bands used in other regions:
- US: 902 to 928 MHz RF Band
- EU: 433 to 434 MHz RF band
- CHINA: 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz
Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org
