This page describes the LoRaWAN frequency bands and channels used in Korea (KR region). It also details the data rates and transmit power (EIRP) for LoRaWAN devices in this region. LoRaWAN frequency bands, channels, EIRP, and data rate requirements are specific to different parts of the world. Let’s take a look at the specifics for Korea.

What LoRaWAN Frequency Bands are Used in Korea?

The KR920-923 ISM Band is used in Korea for LoRaWAN systems.

The first three channel frequencies are 922.1 MHz, 922.3 MHz, and 922.5 MHz.

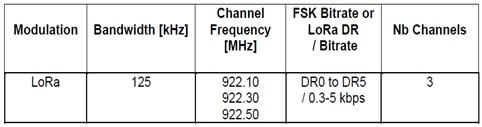

Korea LoRaWAN frequency channels

The table above also outlines the modulation, bandwidth (125 KHz), channels, bit rate, and duty cycle.

LoRaWAN Data Rates in Korea

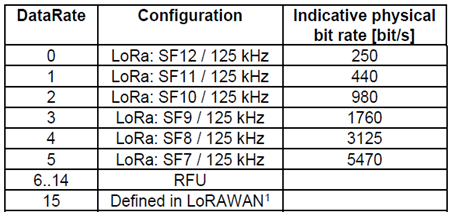

The following table shows the bit rates (data rates) for LoRaWAN end devices in Korea.

Korea LoRaWAN data rates

LoRaWAN Transmit (Tx Power) and EIRP in Korea

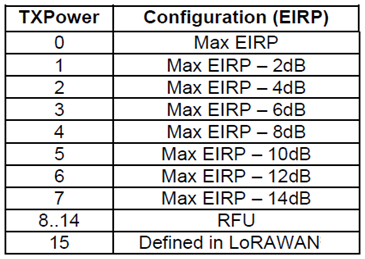

The table below details the transmit power and EIRP for the LoRaWAN Korea region.

Korea LoRaWAN Tx Power EIRP

The maximum EIRP is considered to be +14dBm.

LoRaWAN Frequency Bands in Other Regions of the World

  • US: 902 to 928MHz RF Band
  • EU: 433 to 434 MHz RF band
  • CHINA: 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz LoRaWAN bands are used.

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org
