The RS-232 serial interface is a standard for serial communication, defining the electrical characteristics, timing of signals, and the meaning of signals for connecting computers, peripherals, and other devices. Developed in the 1960s, RS-232 was widely used in computer serial ports and remains in use in various applications. It supports data transfer rates from approximately 110 bps to about 115200 bps (bits per second).

HyperTerminal is a common application used to check the serial communication port of a computer, often referred to as a COM port. The interface uses two types of connectors: DB9 and DB25. This interface is mainly used for one-to-one serial communication, for example, connecting a computer to a dial-up modem.

Here are the pin diagrams for DB25 and DB9 connectors:

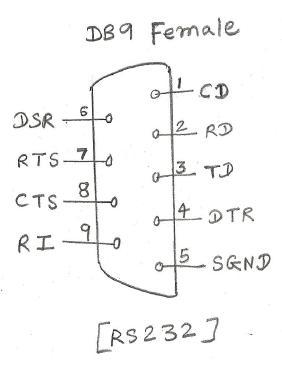

RS232 interface DB9

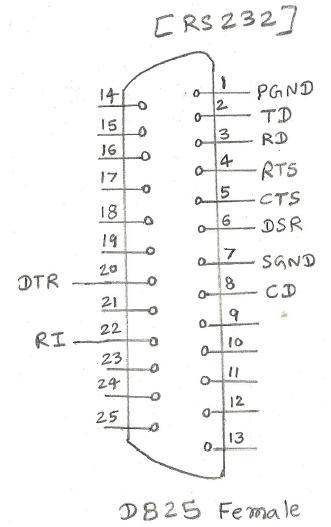

RS232 interface DB25

Figures 1 and 2 depict RS-232 pin diagrams for DB9 and DB25 connectors, respectively. As shown, it carries both data and control signal lines, which are described below:

  • RD (Receive Data): Receives data from DCE (Data Communication Equipment) and passes it to DTE (Data Terminal Equipment). For example, DTE could be the computer and DCE the modem connected to the telephone line.
  • TD (Transmit Data): Carries data from DTE to DCE.
  • CD (Carrier Detect): A signal from DCE to DTE, indicating that the modem (DCE) is busy, i.e., already using the line.
  • RI (Ring Indicator): A signal from DCE to DTE, indicating the Modem (DCE) detects a ring from the telephone line.
  • RTS (Request to Send): DTE requests DCE to become ready to accept data.
  • CTS (Clear to Send): DCE acknowledges to DTE that it’s ready to receive data (response to RTS).
  • DTR (Data Terminal Ready): DTE is ready to transmit.
  • DSR (Data Set Ready): DCE is ready to receive.
  • SGND (Signal Ground)

RS232 Interface: Key Features

The following are key details of the RS232 interface useful for serial communication:

  • Binary 0 Voltage Range: Approximately +5 to +15 V (DC)
  • Binary 1 Voltage Range: Approximately -5 to -15 V (DC)
  • Start Bit: Binary 0
  • Data Bits: 5, 6, 7, or 8 bits (configurable)
  • Parity: Odd/Even; typically not used with 8 data bits.
  • Stop Bit: Binary 1; one or two bits.

RS232 Technical Specifications

The table below outlines the technical specifications for the RS232 interface:

SpecificationsRS232
Mode of OperationSingle-Ended
Number of Drivers/Receivers on Line1 Driver, 1 Receiver
Maximum Cable Length50 feet
Maximum Data Rate460 kbps
Max. Driver Output Voltage+/- 25 V
Max. Driver Current (High Impedance)+/- 6mA at +/-2V
Slew Rate (Max)30 V/µS
Receiver Input Voltage Range+/-15V
Receiver Input Sensitivity+/-3V
Driver Load Impedance3K to 7K Ohms
Receiver Input Resistance3K to 7K Ohms

Benefits of RS232

  1. Simplicity: RS-232 is simple to implement, with straightforward wiring and protocol.
  2. Wide Support: Despite its age, RS-232 remains widely supported in various industries.
  3. Distance: RS-232 can support communication over considerable distances, up to 50 feet, depending on the baud rate and cable quality.
  4. Control Signals: It includes control signals such as RTS (Request to Send) and CTS (Clear to Send), which help manage data flow and control communication between devices.

Drawbacks of RS232

  1. Low Data Transfer Rates: RS-232 has relatively low data transfer rates compared to modern communication interfaces, typically topping out around 115.2 kbps.
  2. Bulky Connectors: The physical connectors, such as DB25 and DB9, are large and cumbersome compared to more modern alternatives.
  3. Voltage Incompatibility: The wide voltage range (-15V to +15V) can be incompatible with modern low-voltage logic systems, often requiring level shifters.
  4. Point-to-Point: RS-232 is designed for point-to-point communication, meaning it can only connect two devices directly.
  5. Noise Susceptibility: RS-232 can be susceptible to electrical noise, especially over long distances or in electrically noisy environments.

Summary

In summary, while RS-232 is a mature and reliable standard, its limitations in speed, device connectivity, and compatibility with modern systems often make it less suitable for new applications. Nonetheless, its simplicity and widespread support continue to make it relevant in specific niches.
