This page explores the pros and cons of RS232 communication, outlining its benefits and drawbacks.

What is RS232?

Introduction:

  • RS232 is a full-duplex serial communication protocol.
  • It utilizes voltage levels of approximately +/- 12V to represent binary data (0 or 1).
  • RS232 cables typically have a length of about 15 meters (50 feet).
  • The interface is commonly implemented using DB9 and DB25 connectors.

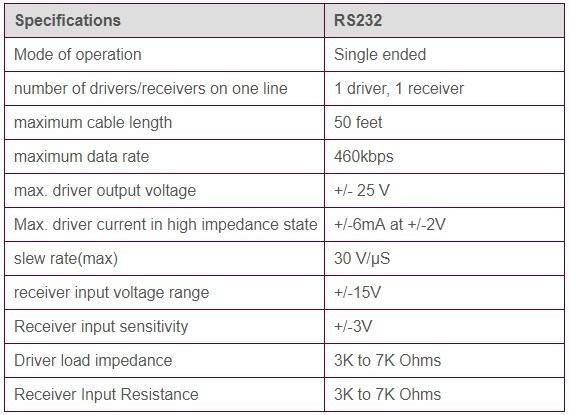

The following table outlines the technical specifications of the serial RS232 interface:

RS232 specifications

RS232 specifications

Benefits or Advantages of RS232

Here’s a rundown of the benefits of using RS232:

  • Simplicity and Legacy Support: Due to its simple design, RS232 is supported in a vast number of older, compatible devices.
  • Point-to-Point Connection: It’s widely used for direct connections between DTE (Data Terminal Equipment) and DCE (Data Communication Equipment) devices.
  • Distance: It can support relatively long distances, up to 50 feet, especially at lower baud rates and with error correction implemented.
  • Noise Immunity: The use of +/- 5 Volts or higher for representing binary logic makes RS232 fairly resistant to noise interference.
  • Cost-Effective: RS232 is generally a low-cost interface solution.
  • Adaptability: Converters and adapters are readily available and affordable for converting RS232 to other interfaces like RS485, USB, or Ethernet.

Drawbacks or Disadvantages of RS232

Here are some of the limitations of RS232:

  • System-to-System Communication: Best suited for communication between entire systems, but not ideal for chip-to-chip or chip-to-sensor communication within a device.
  • Speed Limitations: Supports lower speeds over longer distances. Higher speeds (e.g., 115200 baud) are only achievable over shorter distances.
  • Additional Hardware: Requires separate transceiver chips, adding to the overall system cost.
  • Single Master/Slave: Designed for single master and single slave configurations, making it unsuitable for single master-multiple slaves setups.
  • Unbalanced Transmission: RS232 uses unbalanced transmission, which can be more susceptible to noise in certain environments compared to balanced transmission methods.
