RS485 Advantages and Disadvantages

rs485 serial communication data transfer protocol interface

This page explores the pros and cons of RS485. It highlights the benefits and drawbacks of using this serial communication protocol.

What is RS485?

Introduction:

  • RS485 is a serial communication protocol that leverages differential signals for transmitting binary data. It utilizes positive and negative 5V to generate a differential voltage.

  • Compared to RS232, RS485 supports higher data rates and longer distances. It can support distances of up to 1200 meters (approximately 4000 ft).

  • Unlike the one-to-one communication model of RS232, RS485 enables communication with multiple receivers from a single driver.

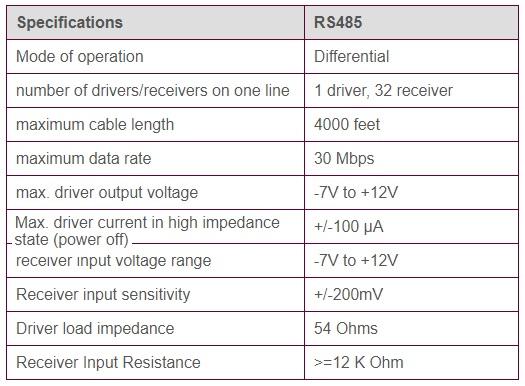

  • The following table provides a summary of the technical specifications of the RS485 serial interface.

RS485 specifications

Benefits or Advantages of RS485

Here are the key advantages of using RS485:

  • Long Distance & High Speed: Due to differential signaling, RS485 supports a maximum data transmission speed of 100 Kbps over distances up to 1200 meters (4000 ft).

  • Noise Immunity: Differential signaling makes the RS485 interface highly resistant to noise.

  • Multi-Drop Capability: Supports a single master and multiple slaves (multi-station setup) thanks to its balanced transmission line.

  • Lower Signal Level: Considered a lower signal level interface.

  • Faster Communication: Provides faster communication compared to the I2C protocol.

  • Short Response Time: When fewer than 32 controllers (or readers) communicate on the same data line, the response time between the reader and the software is short.

Drawbacks or Disadvantages of RS485

Here are the limitations and disadvantages of RS485:

  • Single Node Transmission: In RS485 mode, only one node can transmit data at any given time.

  • Specialized Cables: RS485 requires specific types of cables, and standard cables are not suitable. These cables are also more expensive compared to CAT5 cables.

  • Wiring Complexity: It requires 4 wires for multidrop communication, unlike RS232, which only needs 2 wires for point-to-point communication.

  • Not Suitable for Large Data Transfer at High Speed: RS485 is not well-suited for transferring large amounts of data at 115.2 Kbps due to potential data loss at such high speeds. Data transfer at 56.2 Kbps is more stable but takes longer.

  • Difficult System Backup: Backing up an RS485 system is difficult because it requires special switches and configurations to build a redundant host PC.
