Understanding Transistor-Transistor Logic (TTL) Circuits

ttl logic circuit digital logic transistor level shifter

Transistor-Transistor Logic (TTL) is a widely used digital logic family that employs bipolar junction transistors (BJTs) to implement various digital functions. TTL circuits are popular due to their reliability and ease of use across numerous applications.

TTL NAND Gate Logic Circuit

A TTL NAND gate is a digital logic gate that performs the logical AND function on two or more inputs and then inverts the result.

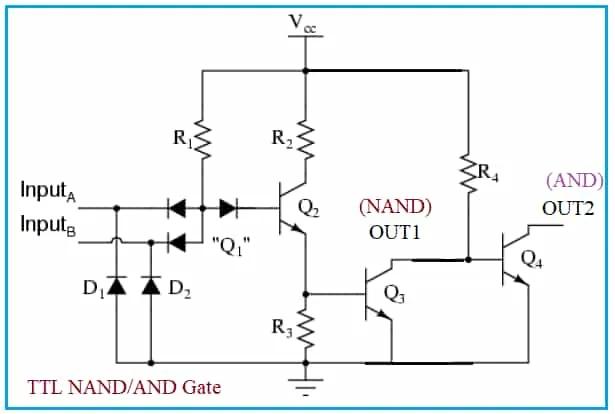

TTL NAND,Inverter and AND logic gate

It typically consists of multiple transistors connected to emulate the logical function of a NAND gate. A pull-up resistor connected to the output ensures that the output is pulled high when no transistor is conducting.

  • Case-1: When both inputs are high (logic 1), the transistors conduct, providing a low (logic 0) output.
  • Case-2: If any input is low (logic 0), the corresponding transistor turns off, and the output is pulled high (logic 1).

TTL Inverter (NOT Gate) Circuit

A TTL inverter, also known as a NOT gate, performs the logical inversion of its input. It consists of a single transistor or a pair of transistors configured to invert the input signal. Similar to the NAND gate, a pull-up resistor ensures a high output when the transistor is off.

  • Case-1: When the input is high (logic 1), the transistor is off, and the output is pulled high (logic 1).
  • Case-2: When the input is low (logic 0), the transistor conducts, pulling the output to low (logic 0).

TTL Level Converter (5V to 3.3V) Circuit

A TTL level shifter is used to convert signals between different voltage levels. This is crucial when interfacing TTL circuits with devices operating at different voltage levels.

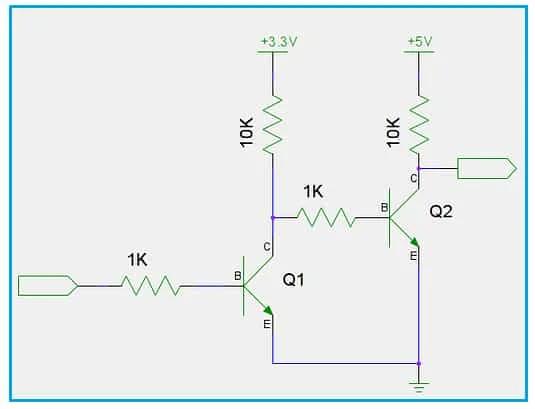

TTL Level Shifter

The level shifter typically involves using resistors to create a voltage divider. Two resistors are used as a voltage divider to reduce the TTL high-level voltage to the required lower level.

The circuit may include input and output buffers to isolate the TTL circuit from the external circuit and ensure proper signal integrity. Bipolar transistors may be used in the level shifter to achieve the desired voltage shifting.

Refer to Voltage level converter or shifter circuits for more details.

Advantages and Disadvantages of TTL Circuits

Following are the advantages of TTL circuits:

  1. Reliable and robust.
  2. Well-established technology with a long history of use.
  3. Fast switching speeds.

Following are the disadvantages of TTL circuits:

  1. Higher power consumption compared to CMOS.
  2. Limited fan-out capability.
  3. More susceptible to noise compared to differential signaling technologies like ECL.

Conclusion

Despite the advent of other digital logic families like CMOS, TTL remains in use for certain applications due to its reliability and historical significance.
