RFN-Channel vs. P-Channel FETs: Key Differences Explained
This article highlights the differences between N-channel and P-channel Field-Effect Transistors (FETs), both essential semiconductor devices used for controlling current flow in electronic circuits. The core principle of these devices lies in modulating the conductivity of a semiconductor channel by applying an electric field to the gate terminal. The critical distinction between them is the type of majority charge carriers involved: electrons for N-channel FETs and holes for P-channel FETs.
N-Channel FET
An N-channel FET controls its conductivity via the voltage applied to its gate. It’s made of a semiconductor material, typically silicon, and has three terminals: source, drain, and gate. The conducting channel between the source and drain is formed by the flow of electrons (the majority charge carriers in this case).
When you apply a positive voltage to the gate relative to the source, an electric field is created. This field attracts electrons, allowing them to flow from the source to the drain, enabling current conduction.
N-channel FETs are commonly found in amplifiers, switches, and digital logic circuits. They’re often used in high-side switching applications and circuits with positive voltage requirements.

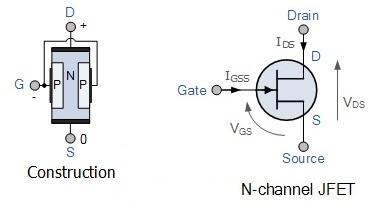

As illustrated in Figure 1, an N-channel FET is built using a bar of N-type material into which a pair of P-type regions are diffused. Figure 1 also shows the circuit symbol for an N-channel FET.
Key Features of N-Channel Junction FET (JFET):
- Current carriers are electrons.
- Electron mobility is high.
- Input noise is low.
- Trans-conductance is high.
P-Channel FET
A P-channel FET, similar to its N-channel counterpart, controls conductivity through the voltage applied to the gate terminal. It also has three terminals: source, drain, and gate. However, the conducting channel in a P-channel FET is formed by the flow of holes (the majority charge carriers).
Applying a negative voltage to the gate relative to the source creates an electric field that attracts holes, enabling them to flow from the source to the drain and conduct current.
P-channel FETs are used in various electronic circuits, particularly in low-side switching applications and circuits with negative voltage requirements. They’re commonly used in power management circuits, voltage regulators, and battery-powered devices.

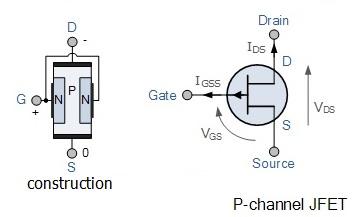

Similar to N-channel FETs, a P-channel FET is constructed using a bar of P-type material into which a pair of N-type regions are diffused. Figure 2 illustrates the circuit symbol for a P-channel FET.
Key Features of P-Channel Junction FET (JFET):
- Current carriers are holes.
- Hole mobility is low.
- Input noise is high.
- Trans-conductance is low.
N-Channel FET vs. P-Channel FET: Feature Comparison
The following table compares N-channel and P-channel FETs based on various features and characteristics:
| Feature | N-Channel FET | P-Channel FET |
|---|---|---|
| Charge Carriers | Electrons | Holes |
| Majority Carrier | Electrons | Holes |
| Conductivity | Conducts when Vgs is positive | Conducts when Vgs is negative |
| Turn ON voltage | Positive | Negative |
| Switching Speed | Faster | Slower |
| Drain current direction | From drain to source | From source to drain |
| Voltage Handling | Typically used for positive voltage applications | Typically used for negative voltage applications |
| Gate Threshold Voltage | Typically has a lower (negative) gate threshold voltage | Typically has a higher (positive) gate threshold voltage |
| Cost | Generally lower | Generally higher |
| Heat dissipation | Less heat dissipation due to majority carrier being electrons | More heat dissipation due to majority carrier being holes |
| Noise sensitivity | Less sensitive to noise | More sensitive to noise |
Conclusion
Overall, the comparison reveals that N-channel FETs generally perform better than P-channel FETs in many aspects. The characteristics outlined here will help engineers make informed decisions when choosing between N-channel and P-channel FETs or MOSFETs, based on the specific requirements of their applications, considering factors like voltage polarity, switching speed, cost, noise sensitivity, and thermal management.
