This article clarifies the fundamental distinctions between diodes and transistors.

Diode

A diode is a two-terminal electronic device consisting of an anode and a cathode. The voltage characteristics of various diode types dictate their specific applications.

Common diode types include:

  • GUNN
  • Varactor
  • Tunnel
  • PIN
  • Zener
  • Schottky
  • Impatt
  • Trapatt
  • Baritt

diode symbol

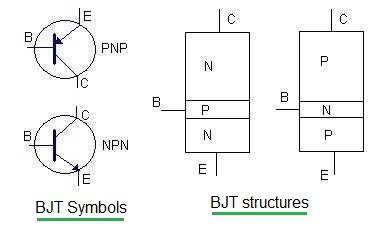

BJT

Diode Forward Voltage

This refers to the voltage across the diode’s electrodes when current is flowing. The current increases exponentially with the voltage. This results in a relatively constant voltage over a typical range of currents. Diodes typically exhibit a voltage of 0 to 7 volts at 10 mA, making them highly useful. A diode can serve as a voltage reference when configured to provide a reference voltage equal to the forward voltage across its terminals.

Transistor

A transistor is a solid-state counterpart to a triode vacuum tube.

Different types of transistors exist, including:

  • BJT (Bipolar Junction Transistor)
  • FET (Field-Effect Transistor)
  • MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor)

BJTs are current-controlled devices, providing amplification or gain to an input signal. The common terminals in a BJT are the Collector, Emitter, and Base. Furthermore, BJTs come in two configurations: PNP and NPN. Silicon and germanium are commonly used semiconductor materials in transistor construction.

FETs are voltage-controlled devices with Source, Gate, and Drain terminals.
