CCD vs CMOS Image Sensors: Key Differences Explained
Advertisement
CCD (Charge-Coupled Device) and CMOS (Complementary Metal-Oxide Semiconductor) image sensors are two primary technologies used in digital cameras and imaging devices. Both types consist of a 2-dimensional array of thousands of discrete pixels. When light hits these pixels, it generates free electrons. The quantity of charge produced depends on the intensity of the incident photons. Both CCD and CMOS sensors rely on the photoelectric effect to convert light photons into an electrical signal. However, they differ in how they convert this charge into voltage and how the chip is read out.

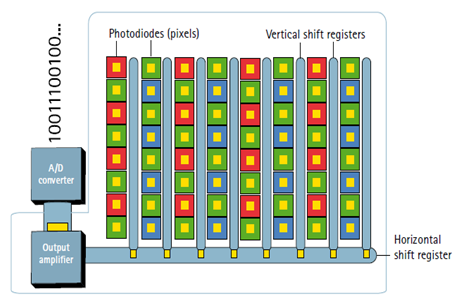

CCD Image Sensors
- CCD transfers each pixel’s charge packet sequentially to convert its charge to a voltage.
- CCDs consist of an array of thousands to millions of light-sensitive elements, known as pixels, etched onto a silicon surface. Each pixel is essentially a buried channel MOS capacitor. CCDs are typically fabricated using a p-type substrate, with the buried channel implemented by forming a thin n-type region on this surface.
- The size of CCDs is often specified in Megapixels. A megapixel value represents the multiplication of the number of pixels in a row and the number of pixels in a column.
Let’s delve into how a CCD sensor operates:
- When the sensor array is exposed to light, the number of electrons (i.e., the quantity of charge) held under a specific pixel will vary directly with the luminous intensity exposure of that particular pixel.
- This charge is then read out by suitable electronics and converted into a digital bit pattern, which can be analyzed and stored on a computer. This digital bit pattern represents the image.
- To record images in full color, a Bayer’s color filter array is often bonded to the sensor substrate. This filter array consists of alternating rows of red/green and blue/green filters (known as an RGBG filter). A specific color filter allows photons of that color to pass through to the pixel beneath.
- An EMCCD (Electron Multiplying CCD) is sometimes used in place of a traditional CCD to overcome certain drawbacks. EMCCDs incorporate an electron-multiplying structure on the chip. This allows EMCCDs to detect single-photon events without an image intensifier. EMCCD sensors achieve higher sensitivity and higher speed due to the amplification of the charge signal before it reaches the charge amplifier.
Advantages and Disadvantages of CCD Image Sensors
Advantages:
- Offers higher sensitivity in low-light conditions.
- Possesses high-speed imaging capabilities, including better daytime imaging performance.
- Reduced likelihood of damaging the sensor when viewing in bright conditions.
Disadvantages:
- High power consumption, often requiring active cooling of the CCD.
Applications
Due to their operation in extremely low-light conditions, EMCCDs offer a wide range of applications, including:
- Surveillance at ports/airports
- Border and coastal surveillance
- Protection of sensitive sites and critical assets
- Low-light scientific imaging (e.g., astronomy)

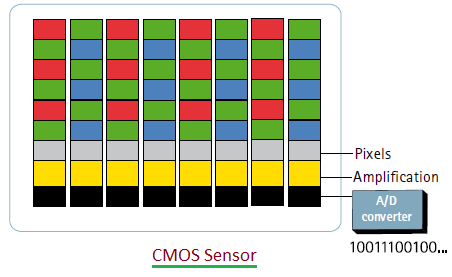

CMOS Image Sensors
- In CMOS sensors, the charge-to-voltage conversion takes place within each individual pixel.
- Unlike CCD sensors, in CMOS sensors, each pixel has its own charge-to-voltage converter, amplifier, and pixel-select switch.
- CMOS sensors utilize an active pixel sensor architecture, unlike CCD’s passive architecture.
- CMOS sensors also incorporate on-chip amplifiers, noise-correction circuits, A/D converters, and other circuits crucial to the sensor’s operation. This allows the chip to directly output digital bits. However, due to these functionalities on the chip itself, the area available for light capture is reduced.
- In CMOS sensors, uniformity and image quality can be poorer, as each pixel performs its own conversion.
- The readout mechanism is massively parallel, allowing for higher bandwidth and faster speeds.
Difference between CCD and CMOS Image Sensors
The following table compares CCD sensors and CMOS sensors used in cameras and summarizes the key differences:
Features | CCD sensor | CMOS sensor |
---|---|---|
Full Form | Charge Coupled Device | Complementary Metal Oxide Semiconductor |
Structure | Uses a sequential process to transfer charge. | Each pixel has its own amplifier and readout circuit. |
Susceptibility to Noise | Less (Creates high quality and low noise images) | More |
Sensitivity | Greater | Lower |
Power consumption | More | Less |
Battery Life | Short | Long |
Manufacturing | Requires specialized assembly lines | Easier to manufacture |
Manufacturing Cost | More | Less |
Architecture used | Passive Pixel sensor | Active Pixel sensor |
Readout mechanism | Serial | Parallel |
Speed | Slower readout speeds | Faster readout speeds |
Dynamic Range | High | Low |
Blooming effect | More prone to blooming (Overflow of charge) | Less prone to blooming |
Integration with electronics | More complex integration due to sequential readout | Easier integration due to on-chip electronics |
Usage in low light conditions | Typically performs better in low light conditions | May struggle more in low light conditions |
Applications | Used in cameras offering excellent photo sensitivity with focus on high quality & high resolution images. | Used in cameras offering lower photo sensitivity, low image quality and low resolution. |
Conclusion
In summary:
- CCD Image Sensors: Traditionally known for higher image quality, better dynamic range, and lower noise levels, making them suitable for scientific imaging and high-end digital cameras. They have slower readout speeds and higher power consumption.
- CMOS Image Sensors: Known for lower power consumption, faster readout speeds, and generally lower cost. They are widely used in consumer digital cameras, mobile devices, and applications where power efficiency and integration with electronics are crucial. Historically, they had higher noise levels and lower dynamic range compared to CCDs, although modern advancements have narrowed this gap.
In recent years, CMOS sensors have significantly advanced in terms of noise reduction, dynamic range improvement, and low-light performance, making them the dominant technology in most digital imaging applications due to their versatility and cost-effectiveness.
