CMOS Image Sensor Applications: A Comprehensive Guide

A CMOS (Complementary Metal-Oxide-Semiconductor) image sensor is an electronic device used to capture images in digital cameras, smartphones, and other imaging devices. It converts light into electrical signals to create digital images. CMOS image sensors are widely favored for their advantages in speed, power consumption, and integration capabilities.

How CMOS Image Sensors Work

The following points describe the structure and working operation of a CMOS image sensor:

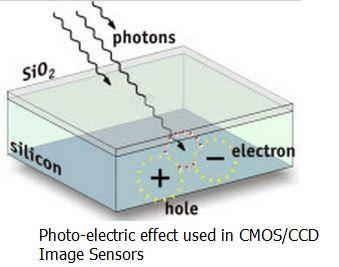

• The sensor array is made up of millions of photodiodes (pixels), each of which converts incoming light into an electrical charge. The amount of charge generated is proportional to the light intensity.
• Each pixel in a CMOS sensor has an active transistor that amplifies the signal. This is known as an Active Pixel Sensor (APS) design, which allows for faster readout and lower power consumption.
• CMOS technology allows the integration of additional circuitry (such as noise reduction, analog-to-digital converters, and signal processing) onto the same chip, enhancing functionality and reducing system complexity.

Key features of CMOS image sensors include:

• High Speed: CMOS sensors can read data quickly, enabling high frame rates for video and rapid image capture for still photography.
• Low Power Consumption: They typically consume less power than CCD (Charge Coupled Device) sensors, making them suitable for battery-operated devices like smartphones and cameras.
• Integration: The ability to integrate additional processing circuits on the same chip reduces the size and cost of the imaging system.

CMOS Image Sensor Applications

Here are 10 applications of CMOS image sensors, including their use in digital cameras:

1. Digital Cameras and Smartphones: CMOS sensors capture high-resolution images and videos. These sensors are the preferred choice for digital cameras as well as cameras in smartphones and tablets due to their high speed, low power consumption, and integration capabilities.

2. Automotive ADAS: In the automotive domain, CMOS sensors are used in Advanced Driver Assistance Systems (ADAS) for lane departure warning, collision avoidance, and adaptive cruise control. Due to its high-speed imaging and real-time processing, it ensures improvement in vehicle safety and automation. It is also used in rear-view and surround-view cameras to provide enhanced visibility for parking and maneuvering.

3. Security Cameras: Used in security cameras to monitor and record activities in various environments.

4. Medical Imaging: Used in medical endoscopes to capture high-resolution images of internal body structures. In digital radiography, it is used in digital X-ray systems to capture and process X-ray images.

5. Machine Vision: Employed in machine vision systems for quality control, inspection, and automation in manufacturing.

6. Astronomy: In the astronomy domain, it is used in telescopes and other astronomical instruments to capture images of celestial objects.

7. Scientific Instruments: Used in various scientific instruments and experiments to capture and analyze images.

8. Consumer Electronics: In computers and smart TVs for video conferencing and streaming. In gaming consoles, it is used in motion-sensing controllers and VR (Virtual Reality) headsets.

9. Agriculture: In drones and UAVs (Unmanned Aerial Vehicles), it is used for aerial imaging to monitor crops, assess plant health, and manage agricultural land.

10. Traffic Management: For traffic management, it is used in traffic cameras to monitor vehicle flow and enforce traffic regulations.

11. Robotics: Integrated into robotic systems for navigation, object recognition, and interaction with the environment.

12. AR/VR: Used in Augmented Reality (AR) and Virtual Reality (VR) devices to capture and process real-world images for immersive experiences.

Advantages of CMOS Image Sensors

The benefits or advantages of CMOS image sensors include:

• Integration: CMOS technology allows for the integration of additional functions, reducing the need for external components and making the design more compact and cost-effective.

• Power Efficiency: Efficient power usage makes CMOS sensors ideal for portable devices, extending battery life.

• High Speed: High-speed readout capabilities enable the capture of fast-moving subjects and high frame rate video.

• Cost-Effective Manufacturing: The manufacturing process for CMOS sensors is typically less expensive than that for CCD sensors, leading to lower overall costs.

Limitations of CMOS Image Sensors

The drawbacks or limitations of CMOS image sensors include:

• Noise: CMOS sensors can be more susceptible to noise, although advances in technology have significantly mitigated this issue.

• Dynamic Range: While improving, CMOS sensors may have a lower dynamic range compared to CCD sensors, potentially affecting performance in very high-contrast scenes.

Conclusion

CMOS image sensors are a critical component in modern imaging technology, offering a blend of high performance, low power consumption, and cost-effectiveness. Their ability to integrate additional processing functions on the same chip has revolutionized the design and functionality of digital cameras, smartphones, automotive systems, medical devices, and more. Despite some limitations, continuous advancements in CMOS technology continue to enhance their capabilities and expand their range of applications.
