Slat Array vs. Tile Array Antennas: A Comparison

This article explores the differences between Slat Array Antennas and Tile Array Antennas, two prominent designs used in Active Electronically Scanned Array (AESA) radars. Both antenna types are instrumental in enabling multi-beam capabilities for radar systems. We will delve into their respective advantages and disadvantages.

Slat Array Antenna

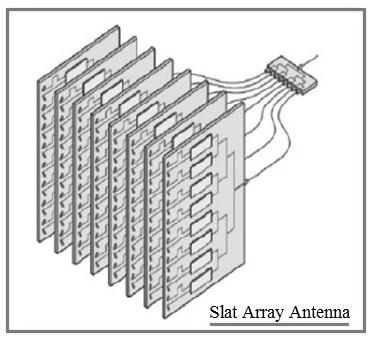

Figure 1: Slat Array Antenna

As shown in Figure 1, the Slat Array Antenna consists of a series of slats arranged perpendicularly to the face of the array.

Advantages of Slat Array Antennas:

• Large Surface Area: Provides ample space for mounting components and transmit/receive modules.
• Improved Thermal Management: The architecture, with its large surface area across the depth of the slat, distributes the thermal load across a larger volume.

Disadvantages of Slat Array Antennas:

• High Component Count: Requires a large number of RF boards.
• Extensive Cabling: Needs lengthy cables to satisfy the requirements of the RF, DC, and control sections on the slats.
• Increased Cost: The above requirements lead to higher overall costs.

Tile Array Antenna

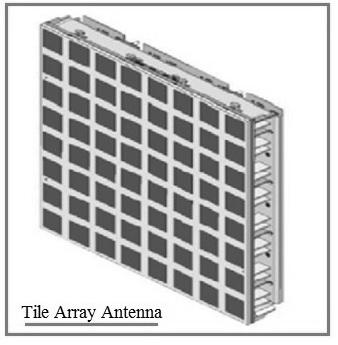

Figure 2: Tile Array Antenna

Figure 2 illustrates the Tile Array Antenna. This design employs an array of layers arranged in parallel to the face. The antenna and beamforming modules are typically mounted together on a single multi-layer board, along with transmit/receive modules on the back.

Advantages of Tile Array Antennas:

• Reduced Surface Area: Significantly reduces the required surface area compared to Slat Array Antennas.
• Fewer Cables and Connectors: This approach lowers the number of necessary cables and connectors.
• Lower Cost: Achieves a lower cost due to large-scale production and simpler soldering techniques. Some implementations report up to 5 times reduction in cost compared to slat array antennas with the same specifications.
