Shared Aperture Antenna: Advantages and Disadvantages

This page explores the advantages and disadvantages of a Shared Aperture Antenna. It outlines the benefits and drawbacks associated with this type of antenna system.

What is a Shared Aperture Antenna?

Introduction: The shared aperture antenna falls under the category of phased array antennas.

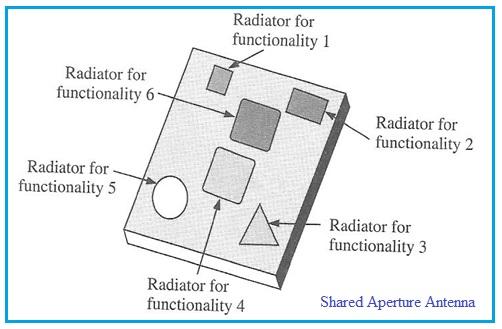

This antenna type essentially combines the functionalities of multiple antennas into a single aperture. Different sub-arrays, mounted on the same aperture, are utilized for various applications, often on a time or frequency-shared basis.

Space and weight are critical considerations in military aircraft, ships, and land vehicles. To address these concerns, shared aperture antennas have emerged, combining several antenna functionalities into a single antenna to meet reduced space and weight demands.

Benefits or Advantages of Shared Aperture Antenna

The following are the key benefits and advantages of using a shared aperture antenna:

• Cost Reduction: A shared aperture antenna houses the functionalities of multiple individual antennas, such as reflector antennas and phased arrays, on a single aperture, leading to significant cost savings.
• Reduced Radar Cross-Section (RCS): It helps in reducing the RCS of military aircraft, making them less detectable.
• Weight and Volume Reduction: It reduces the overall weight and volume of the aircraft system. This is because the need to mount numerous individual antennas externally on the aircraft skin is eliminated.

Drawbacks or Disadvantages of Shared Aperture Antenna

Here are some of the disadvantages associated with shared aperture antennas:

• Design Complexity: The design is complex, requiring careful testing to ensure simultaneous operation of multiple antenna functionalities without interference.
