L, Pi, and T Network Antenna Tuner Comparison

antenna tuner rf impedance matching pi network t network

This article breaks down the differences between L network, Pi network, and T network antenna tuners.

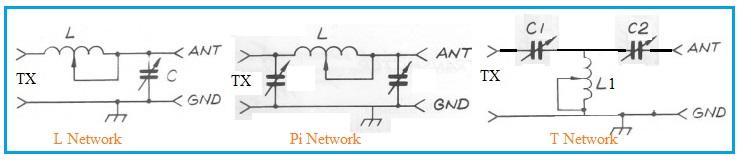

L, Pi, T, Antenna Tuner Circuits

Ideally, an antenna tuner circuit should:

  • Transform high impedance to low impedance, and vice-versa.
  • Eliminate or minimize reactance at the input, presenting a purely resistive load to the transmitter.
  • Facilitate matching between balanced and unbalanced lines.

Let’s look at each tuner type individually.

L Network Antenna Tuner

  • Configuration: As shown in the figure, an L-network antenna tuner consists of a series inductor and a parallel capacitor.

  • Use Case: Primarily used to match an unbalanced high impedance antenna with a low impedance radio (rig).

  • Characteristics: Exhibits very good low-pass characteristics.

  • Impedance Matching: Works well for matching unbalanced antennas with a high impedance to a low impedance rig. A variation of the L-network with a parallel capacitor at the transmitter side followed by a series inductor at the antenna side can be used to match unbalanced antennas having a low impedance to a higher impedance transmitter output.

  • Equations: The inductive and capacitive reactances can be calculated using these formulas:

    • Inductive Reactance (XL) = √[(Ra * Rin) - Ra2] …Equation-1
    • Capacitive Reactance (XC) = (Ra * Rin) / XL …Equation-2

    Where:

    • Rin = Input Impedance
    • Ra = Antenna Impedance

Pi Network Antenna Tuner

  • Configuration: As illustrated in the middle part of the figure, the π-network antenna tuner consists of two variable capacitors and a variable inductor.
  • Use Case: It’s great for matching a high impedance source to a low impedance load.
  • Versatility: By setting one of the capacitors to zero, the Pi network can be converted into an L-network, making it a very versatile tuner circuit.

T Network Antenna Tuner

  • Configuration: The T-network antenna tuner, seen in the figure, includes two variable capacitors in series with the load, and a variable inductor connected in parallel at the junction.
  • Characteristics: This configuration offers high-pass characteristics.
  • Multi-band Capability: With appropriate L and C values, this circuit can be effectively used for multi-band applications.
