RF Balun Calculator | RF LC Balun Calculator and Formula

rf
balun
calculator
lc circuit
impedance matching

This page provides an RF Balun calculator and explains the formula used. This specific calculator is for RF LC balun types.

Inputs

Outputs

EXAMPLE of RF Balun Calculator:

  • INPUTS:
    • Frequency (F) = 1000 MHz
    • Z1 = 50 Ohm
    • Z2 = 35.4 Ohm
  • OUTPUT:
    • L = 6.696 nH
    • C = 3.783 pF

RF LC Balun Calculator Formula or Equation

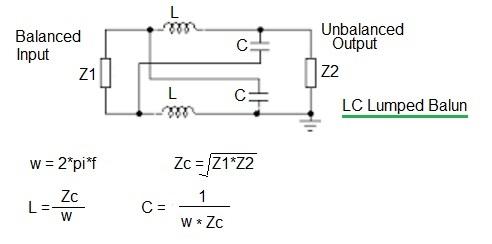

The figure below illustrates a typical LC bridge configuration, often referred to as a lattice-type balun.

This design uses two inductors and two capacitors. These components create approximately +/- 90 degrees of phase shift between the input and output signals.

The following equation or formula is used in the RF LC Balun Calculator:

RF LC Balun Formula
